Tube Sheet Welding in 2026: Complete Applications, Methods & Equipment Guide

Tube sheet welding is a specialized industrial joining process used to fuse arrayed tubes to thick end-plates within heat exchangers, boilers, and pressure vessels. Incorporating a dedicated Tubesheet Automatic Welding Machine ensures maximum seam integrity, high structural strength, and leak-proof sealing under high-pressure, thermal-cycling operational environments.

Table of Contents

• What Is Tube Sheet Welding?

• Where Tube Sheet Welding Is Used

• Tube Sheet Welding Methods

• Equipment Used for Tube Sheet Welding

• When Should You Consider Automation?

• Joint Types & Tube Configurations

• Quality Control & Inspection

What Is Tube Sheet Welding?

Tube sheet welding is a specialized joining technique designed to secure and seal individual tubes within pre-drilled holes in a thick structural plate known as a tube sheet.

In shell-and-tube heat exchangers, surface condensers, and firetube boilers, the tube sheet acts as the main physical boundary separating two distinct fluid streams. Fusing the outer diameter of each tube to the inner circumference of the tube sheet hole creates a robust mechanical joint and an impermeable pressure seal. This process must account for severe thermal expansion differentials between thin-walled tubes and heavy-section plates, preventing stress cracking, fatigue failure, and corrosion over decades of continuous operation.

Industrial applications balance structural strength with seal integrity. Depending on pressure ratings and code specifications, engineers select between strength welds, seal welds, or combination expanded-and-welded joints. Modern manufacturing facilities utilize advanced automated equipment, such as an Orbital Tube Sheet Welding Machine, to deliver precise arc voltage control, program pulse sequences, and ensure uniform bead geometry around the entire circumference of every joint.

Core Mechanics: Tube sheet welding functions by directing a controlled thermal arc along the annular interface of the tube end and plate hole. The concentrated heat pool fuses the tube wall to the surrounding base material, creating a homogeneous metallurgical structure. Precise heat input control prevents burn-through on thin tube walls while ensuring full penetration into the thicker plate.

Where Tube Sheet Welding Is Used

Tube sheet welding is extensively applied across thermal processing, chemical manufacturing, energy production, and heavy industrial systems where fluid segregation is critical.

1. Power Generation and Nuclear Plants: High-pressure feed-water heaters, steam generators, and main surface condensers require zero-leakage tolerances. Radioactive or high-energy steam lines demand automated Tubesheet Automatic Welding Machine operations to comply with strict safety regulations and eliminate joint micro-fissures.

2. Petrochemical and Chemical Refining: Hydrocrackers, reboilers, and evaporators handle highly aggressive acids, solvents, and hydrocarbons. Weld seams must resist localized crevice corrosion and stress corrosion cracking under aggressive temperature cycles.

3. HVAC and Commercial Refrigeration: Large-scale water chillers and shell-and-tube evaporators rely on automated tube-to-tubesheet joints to prevent refrigerant loss and maintain long-term system efficiency.

4. Marine and Off-Shore Engineering: Seawater heat exchangers and desalination plants require precision welding using titanium, super duplex stainless steel, and copper-nickel alloys to survive salt-water exposure.

Operational Reliability: In chemical processing, a single leaking joint can cause catastrophic fluid contamination, leading to costly plant shutdowns and safety hazards. Utilizing an Orbital Tube Sheet Welding System ensures consistent root fusion across thousands of arrayed joints, minimizing human error during extensive fabrication projects.

Tube Sheet Welding Methods

Selecting the appropriate welding method depends on material thickness, alloy metallurgy, production speed goals, and strict quality codes.

1. Gas Tungsten Arc Welding (GTAW / TIG): GTAW is the industry standard for tube sheet joining due to its superior arc control, clean weld deposits, and high spatial precision. It operates in both autogenous (without filler metal) mode for thin-walled seal welds and wire-fed mode for multi-pass strength welds.

2. Shielded Metal Arc Welding (SMAW): SMAW is primarily limited to field repairs or legacy thick-plate applications. It is rarely specified for original equipment production due to high heat input, slag inclusion risks, and inconsistent bead contours.

3. Gas Metal Arc Welding (GMAW / MIG): GMAW provides high deposition rates for thick structural components, but its higher heat input and spatter risks make it less suitable for thin-walled tube joints. Advanced short-circuit and pulsed GMAW variants are occasionally used for backing passes on large carbon steel arrays.

4. Laser Beam Welding (LBW): High-power fiber laser systems provide rapid processing speeds and extremely narrow heat-affected zones (HAZ). However, high equipment costs and strict joint fit-up requirements limit widespread industrial adoption compared to versatile TIG systems.

Process Control Strategy: Modern high-density arrays favor pulsed GTAW delivered via an automated Tubesheet Automatic Welding Machine. Pulsing the welding current alternates between high-peak current for penetration and low-background current for heat dissipation, preventing sag, burn-through, and thermal distortion of the tube sheet ligament.

Equipment Used for Tube Sheet Welding

Precision tube sheet joining requires specialized hardware designed to deliver consistent arc characteristics, stable rotation speeds, and reliable shielding gas protection.

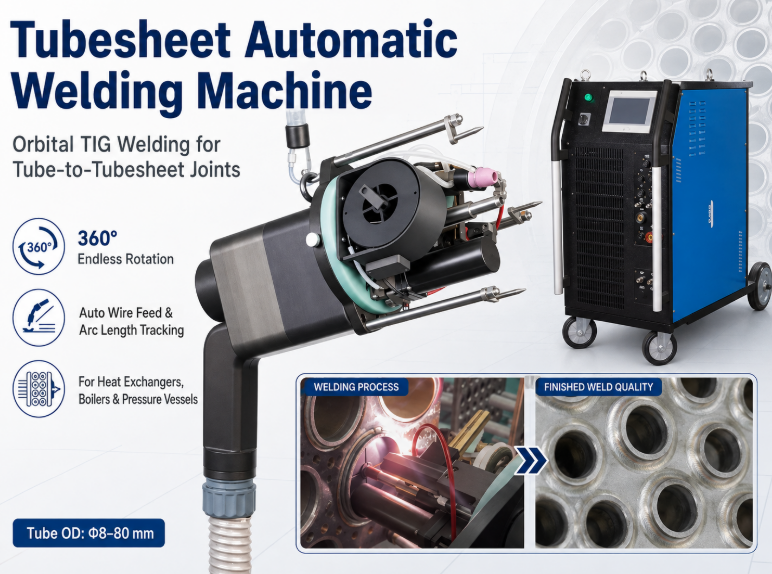

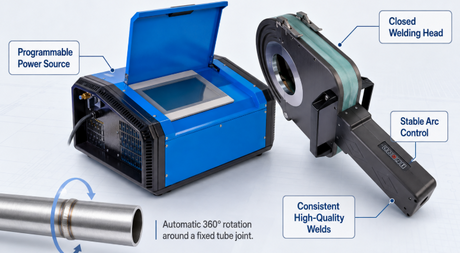

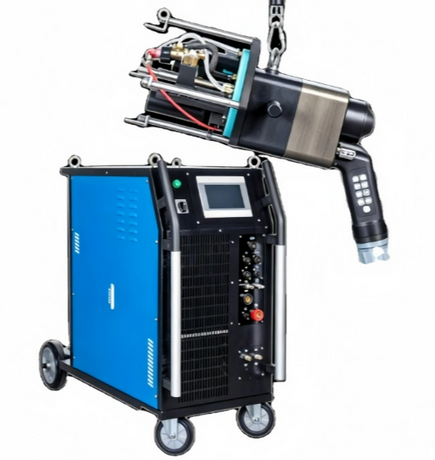

1. Orbital Welding Torch & Head: The orbital head centers inside or over the target tube using an expanding pneumatic or mechanical mandrel. It rotates the TIG torch 360 degrees around the tube circumference with high spatial precision.

2. Programmable Digital Power Source: The central power supply manages multi-pass current profiles, pulse frequency, rotation timing, gas pre-flow/post-flow, and wire feed acceleration rates.

3. Automatic Voltage Control (AVC): AVC dynamically adjusts torch height by monitoring arc voltage fluctuations, maintaining a constant arc length over uneven or recessed tube sheet surfaces.

4. Pneumatic Clamping Mandrels: Precision mandrels expand inside the tube ID, ensuring true axial alignment and preventing torch wobble during high-speed rotation cycles.

Operational Tip (Equipment Calibration): Regularly calibrate the rotation speed and arc voltage sensing circuits on your automated head. Minor concentricity offsets in the expansion mandrel can alter arc length, causing uneven bead width and localized lack-of-fusion defects. Integrating an industrial Tubesheet Automatic Welding System with built-in closed-loop AVC ensures automatic correction for flat, projected, or bevel-faced tube arrays.

When Should You Consider Automation?

Transitioning from manual arc welding to an automated Tubesheet Automatic Welding Machine depends on project volume, alloy complexity, and strict quality compliance standards.

1. High Tube Density Projects: Heat exchangers containing over 500 tubes present severe manual fatigue risks. Operator fatigue leads to irregular travel speed, inconsistent heat input, and higher defect rates toward the end of work shifts.

2. Exotic or High-Alloy Materials: Metallurgy such as Duplex Stainless Steel, Titanium, Inconel, and Hastelloy features narrow thermal processing windows. Automated orbital machines precisely regulate heat input to preserve corrosion resistance and phase balances.

3. Tight Ligament Spacing: Compact heat exchanger geometries feature minimal clearance between adjacent tubes. Manual torch access is physically restricted, whereas compact orbital heads operate within tight spatial limits.

4. Stringent Code Compliance: Projects adhering to ASME Section VIII, TEMA Class R, or PED specifications require fully documented, repeatable welding parameters. Orbital power sources store and export real-time digital logs for complete traceability.

Industry Insight: European heat exchanger manufacturers consistently prioritize automated orbital systems equipped with cold wire feeders. This setup achieves precise mechanical strength requirements on thick-walled power plant evaporators while maintaining fast cycle times.

Joint Types & Tube Configurations

The geometric design of the tube-to-tubesheet joint dictates its mechanical load-bearing capacity, fatigue life, and fluid sealing capability.

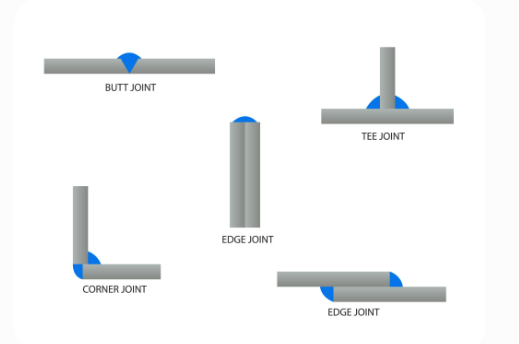

Common tube-to-tubesheet joint geometries and weld profiles. 来源：agung fatria / Getty Images

1. Flush Tube Configuration: The tube end sits completely flush with the front face of the tube sheet. This profile reduces fluid turbulence and erosion at the inlet, making it ideal for high-velocity slurry or steam flows.

2. Projected Tube Configuration: The tube extends slightly past the front face of the tube sheet (typically 1.5 to 3.0 mm). This design provides a clear visual guide for manual or automated positioning and allows ample filler material deposit for heavy strength welds.

3. Recessed Tube Configuration: The tube end sits below the outer surface of the tube sheet within a counterbored recess. This geometry protects the weld joint from direct erosive fluid impact and thermal shocks.

4. Internal Bore Welding (IBW): The weld is made from the inside of the tube, joining the back face of the tube sheet to the tube outer wall. This configuration eliminates crevice gaps entirely, preventing stress corrosion cracking in high-purity or toxic chemical lines.

Joint Preparation: Machining precision J-grooves or V-grooves into the tube sheet around each hole increases weld penetration depth and load carrying capacity. Ensuring clean, grease-free surfaces prior to arc ignition is critical for preventing porosity defects.

Quality Control & Inspection

Comprehensive quality assurance frameworks ensure tube sheet assemblies withstand harsh operational pressures without leaking.

1. Non-Destructive Testing (NDT) via Liquid Penetrant (PT): Technicians apply dye penetrant to the finished tube sheet face to identify surface porosity, micro-fissures, and crater cracks under ultraviolet light.

2. Helium Mass Spectrometer Leak Testing: The shell side is pressurized with helium gas while a vacuum probe scans the front tube sheet face. This test detects microscopic leaks down to extremely tight leak-rate tolerances.

3. Radiographic Testing (RT) & Ultrasonic Testing (UT): Advanced phased-array ultrasonic systems evaluate internal fusion depth, root integrity, and subsurface inclusions without damaging the assembly.

4. Hydrostatic Pressure Testing: The entire heat exchanger undergoes over-pressurization using water or specialized fluid to verify structural robustness before field installation.

Quality Control Principle: High-purity argon gas shielding (purity 99.999%) must be maintained on both the face and tube interior (purge backing) during GTAW welding. Oxygen contamination introduces discolored titanium or stainless steel oxide scale, degrading corrosion resistance and risking premature joint failure.
