As an industrial automation and thermal engineering specialist, I can confirm that an automatic tube sheet welding machine transforms heat exchanger fabrication by automating precision orbital TIG arc rotation around joint boundaries, delivering 100% full-penetration, leak-free welds across thousands of tube-to-tubesheet connections while eliminating manual operator variance and reducing rework rates below 0.5%.

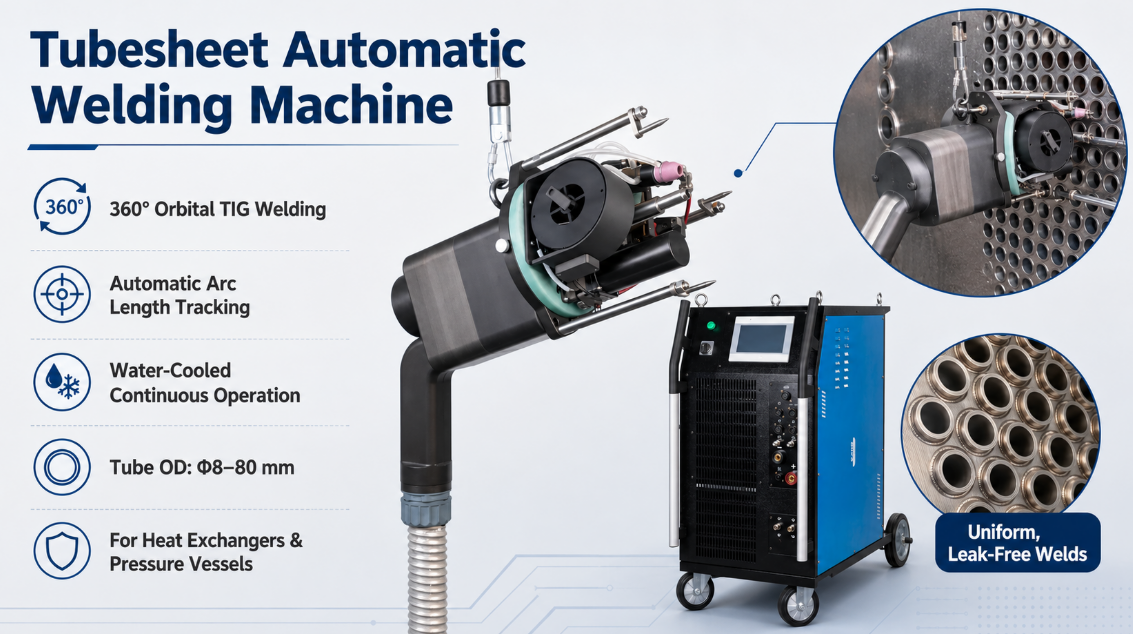

An automatic tube sheet welding machine operates by driving a motorized TIG torch in a circular path around a fixed tube joint using micro-step motion control.
When fabricating heavy-duty pressure vessels, manual welding across thousands of closely spaced tube ends introduces severe heat input variations, physical operator fatigue, and joint porosity. The tubesheet automatic welding machine solves this issue by locking its rotating torch head into the inner diameter of the tube via a pneumatic expansion mandrel or mechanical centering sleeve. Once locked, the integrated digital power supply initiates a pre-purge of inert shield gas, establishes a high-frequency arc, and rotates the tungsten electrode 360 degrees around the joint perimeter with exact current pulsing.
To achieve consistent joint penetration without burning through thin-wall tubes, our engineering designs rely on multi-level digital pulse arc regulation. The system alternates between peak current for rapid localized fusion and background current to cool the weld pool. This tightly controlled thermal profile keeps the heat-affected zone extremely narrow, preventing unwanted expansion, micro-cracking, or tubesheet distortion.
System Parameter | Technical Specification | Operational Impact |
Applicable Tube Outer Diameter (OD) | 6 mm to 89 mm (0.23 in to 3.5 in) | Fits standard shell-and-tube heat exchanger dimensions |
Welding Current Range | 5 A to 400 A (Digital Pulsed DC TIG) | Allows single-pass welding on thin and heavy-wall tubes |
Rotation Speed Range | 0.1 RPM to 4.0 RPM | Controls linear energy input and bead geometry |
Torch Arc Voltage Control (AVC) | Range: ±15 mm; Response: <10 ms | Maintains exact arc gap over uneven tubesheet surfaces |
Shielding & Purge Gas Flow | 99.999% Pure Argon / Argon-Helium Mix | Prevents root oxidation and severe metallurgical decay |
For complex industrial plants that require continuous heavy-duty output, integrating our high-precision orbital tubesheet welding machine into your shop floor eliminates the physical stress placed on manual welders while securing repeatable, high-purity weld profiles shift after shift.
Design Insight: Why do we engineer our tube to tubesheet heads with closed-loop encoder feedback on the rotation axis? In field conditions, tube-to-tubesheet joint pitch tolerances vary slightly. Closed-loop motion monitoring ensures that the arc speed stays perfectly uniform regardless of gravity or positional cable drag.
An automatic tube sheet welding machine is primarily applied across heavy processing industries where fluid containment and pressure boundary security are mandatory.
In oil refineries, shell-and-tube exchangers process volatile hydrocarbon streams at extreme pressures and elevated temperatures. A single leaking joint can cause catastrophic cross-contamination or toxic emissions. A tubesheet automatic welding machine delivers identical, high-purity seal welds across array patterns containing over 3,000 tubes, ensuring zero-leak performance under intense thermal cycling.
Fossil-fuel, biomass, and nuclear facilities use feedwater heaters and condensers that operate under immense thermodynamic stress. Utilizing automated TIG orbital heads guarantees continuous full-penetration strength welds on heavy-wall alloy tubes, protecting power plants from unscheduled shutdowns caused by tube-to-plate joint erosion.
Chemical plants handling highly corrosive media rely on exotic alloys like Titanium, Hastelloy, and 316L Stainless Steel. These metals are hypersensitive to atmospheric oxidation during welding. Automated heads feed shielding gas directly over the weld pool, isolating the reactive liquid metal and keeping the finished joint highly corrosion-resistant.
Large-scale chillers and condenser units require rapid assembly of copper, cupronickel, or stainless steel tubes into dense endplates. Automated tube sheet systems complete these welds at high speed with zero joint defects, allowing HVAC equipment builders to maximize factory output while lowering warranty field claims.
Modern automatic tube sheet welding equipment consists of an integrated power source, a liquid-cooled orbital weld head, and advanced positioning mechanics.
A complete tubesheet automatic welding machine configuration includes an intelligent inverter power source, an external closed-loop liquid cooling unit, a multi-function remote pendant, and a specialized orbital welding torch head. The power unit houses a programmable microprocessor that stores multi-pass parameter libraries, giving technicians precise control over weld schedules.

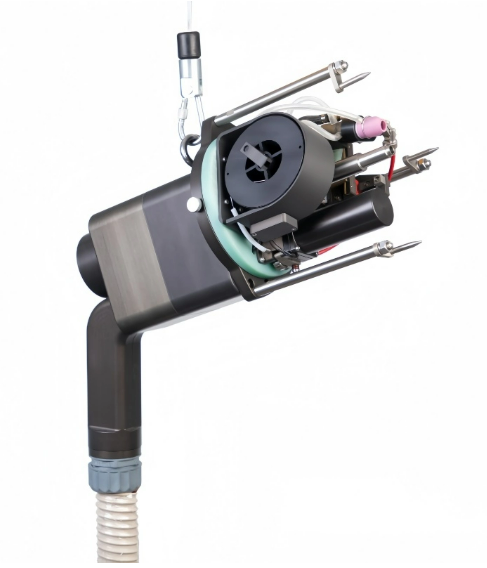

To maintain torch stability during high-current operations, the torch body features dual internal cooling channels. These channels circulate liquid coolant directly around the torch body, gas cup, and tungsten clamp. This active cooling design protects the internal drive gears from thermal degradation and prevents arc drift during long production runs.
Hardware Subsystem | Design Configuration | Primary Functional Benefit |
Welding Torch Rotation Drive | High-torque DC Servo with optical encoder | Provides smooth, non-pulsing rotational speeds |
Tube Positioning Mandrel | Three-jaw pneumatic or manual expanding core | Locks the head square to the tubesheet face |
Arc Voltage Control (AVC) | Motorized Z-axis drive with voltage sensing | Maintains a constant arc length over uneven surfaces |
Shielding Gas Distribution | Dual-chamber diffuser with ceramic nozzle | Guarantees laminar, turbulence-free gas coverage |
Wire Feed Mechanism | Synchronized cold-wire feeder (0.8 mm–1.2 mm) | Fills deep joint bevels during multi-pass strength welds |
When outfitting automated fabrication shops, choosing our industrial-grade tubesheet automatic welding machine ensures that your technicians can handle both autogenous (fusion-only) seal welds and heavy wire-fed structural strength joints using a single modular power unit.
Customer Insight: What design configurations do European and North American pressure vessel plants request most often? European manufacturers heavily favor automatic arc voltage control (AVC) paired with integrated cold-wire feed systems. Because European safety codes require deep structural strength welds rather than simple flush seal welds, integrated wire feeding and real-time arc length tracking are top priorities.
Achieving defect-free tube sheet welds requires precise mechanical joint preparation and strict control over component tolerances.
Automated orbital TIG welding eliminates manual technique variations, but it relies on consistent joint geometry to perform properly. Before placing the orbital head over a joint, the tube ends must be squared using a cold-cutting tube facing tool. Any burrs, surface oxides, oil residue, or fit-up gaps will cause porosity and arc instability.
Proper tube position relative to the face of the tube sheet determines the structural weld configuration:
The tube end sits completely flat with the front face of the tubesheet plate. This joint layout is ideal for autogenous fusion welding (without filler wire) in sanitary heat exchangers, chillers, and food-grade fluid processing systems.
The tube extends beyond the face of the tubesheet by 1.5 mm to 3.0 mm. This extension provides extra base metal that melts down to create a robust, reinforced fillet weld, making it suitable for medium-pressure chemical vessels.
The tubesheet hole features a machined J-prep or V-bevel recess, and the tube sits flush or slightly recessed. This configuration allows multi-pass filler wire deposition, delivering maximum structural strength for high-pressure power generation boilers.
To maintain complete joint alignment across the entire array, our field teams enforce strict hole pitch tolerances. Using a centering sleeve or expanding mandrel ensures that the tungsten electrode stays accurately positioned over the seam throughout its 360-degree path.
Deploying an automatic tube sheet welding machine increases production throughput by over 400% while lowering non-destructive testing (NDT) failure rates to near zero.
In high-volume shell-and-tube manufacturing, manual TIG welding creates a massive operational bottleneck. A skilled welder can complete only 15 to 20 consistent tube joints per hour before physical fatigue causes torch drift, uneven penetration, or tungsten contamination. In contrast, an operator running an automated orbital system can weld 60 to 90 joints per hour with identical bead quality.
Performance Factor | Manual TIG Joint Execution | Automated Tube Sheet Machine | Financial & Operational Return |
Production Speed | 15–20 joints per operator hour | 60–90 joints per machine hour | 300%–400% boost in overall output |
NDT Defect Rate | 3.0% to 8.0% failure rate | Less than 0.5% failure rate | Cuts X-ray and helium leak rework costs |
Operator Skill Dependency | Requires certified class-A TIG welders | Requires trained machine operators | Reduces high specialist labor overhead |
Weld Bead Uniformity | Varies by operator technique and fatigue | Identical, repeatable digital profile | Guarantees compliance with ASME codes |
Heat Input Management | High risk of thermal plate warp | Low, pulsed heat delivery | Prevents heat distortion across tubesheets |
By equipping your factory floor with an advanced Orbital Tubesheet Welding Machine Tube Plate Welder, processing plants reduce operational overhead, shorten order fulfillment times, and gain a major competitive advantage when bidding on complex pressure vessel contracts.
Maintaining top operational performance from an automatic tube sheet welding machine requires disciplined daily care, proper electrode dressing, and regular cooling system maintenance.
To keep your equipment running smoothly in harsh shop floor environments, follow these essential maintenance guidelines:
Inspect the tungsten electrode tip for oxidation, erosion, or metal splatter. Re-grind the electrode longitudinally using a dedicated diamond-wheel electrode sharpener to maintain arc stability.
Clean the shielding gas nozzle and gas lens using a soft brass brush. Remove any metallic spatter to prevent turbulent gas flow during operation.
Check the pneumatic expansion mandrel for mechanical wear. Ensure the expanding jaws seat evenly inside the tube ID without slipping.
Check the coolant level in the internal recirculating water unit. Use distilled water or specialized low-conductivity coolant to keep thermal transfer efficient and prevent internal torch clogging.
Check the multi-pin umbilical cable for outer jacket wear, cuts, or sharp bends that could disrupt communication between the digital power source and the motor drive.
Wipe down the orbital head gear drive assembly using an oil-free degreaser. Apply a dry graphite lubricant to prevent grit from accumulating inside the drive gears.
Torch Alignment and Grounding Security: Always check that your primary ground clamp is securely fastened directly to the tubesheet plate near the active weld cluster. A loose ground connection creates voltage fluctuations that force the AVC system to overcorrect, leading to arc instability, tungsten dip contamination, and premature torch head wear.
An automatic tube sheet welding machine provides the speed, structural integrity, and digital control required by modern pressure vessel, heat exchanger, and boiler manufacturers. By automating arc rotation, heat input, and wire delivery around every tube joint, these specialized orbital systems eliminate defect-prone manual welding variables. Industrial facilities that adopt automated tube sheet welding technology benefit from higher daily joint throughput, lower non-destructive testing rework costs, and consistent compliance with global pressure vessel manufacturing codes.
