Fundamentally Understanding Orbital Welding Machine Mechanics

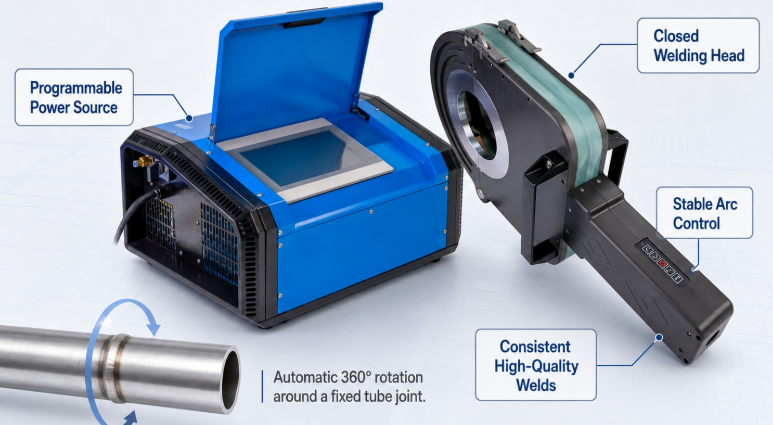

An orbital welding machine is a fully mechanized GTAW system that rotates a tungsten electrode 360 degrees around a fixed cylindrical joint to produce precise, repeatable full-penetration welds.

The core mechanical architecture of an orbital welding machine centers on a computer-controlled power supply coupled to a mechanized enclosed or open weld head. Unlike manual joining where a human operator maintains arc length, torch travel speed, and filler wire feed simultaneously, an orbital welding machine enforces absolute kinematic control. The tube or pipe remains completely stationary while the rotor assembly carries the tungsten electrode around the perimeter. Internal microprocessors divide the 360-degree circumference into specific orbital sectors or levels, adjusting arc current, pulse frequency, and travel velocity dynamically to compensate for gravity-induced puddle sagging in overhead and vertical positions.

From an engineering perspective, arc stability during orbital welding machine operation relies heavily on closed-loop feedback systems. Current pulsing synchronizes with motor rotation to alternatingly melt the base metal during high-peak pulses and allow controlled solidification during low-background pulses. Inert shielding gas, typically high-purity argon or argon-hydrogen blends, flows continuously through the weld head rotor, displacing atmospheric oxygen and preventing oxidation on the outer weld bead. Concurrently, an internal backing purge maintains positive pressure inside the tube bore, protecting the root bead from scaling and ensuring a completely smooth interior surface profile required for ultra-high purity applications.

Our engineering field trials show that the thermal dynamics of an orbital welding machine differ fundamentally from continuous manual arc exposure. By utilizing precision-controlled pulsing, total heat input per unit length is drastically reduced compared to manual GTAW. This controlled heat distribution limits grain growth within the heat-affected zone, mitigates carbide precipitation in austenitic stainless steels like 316L, and preserves corrosion resistance. Modern fully automatic units incorporate advanced digital controls that regulate arc voltage continuously, compensating for micro-variations in tube wall thickness and ovality across complex piping runs.

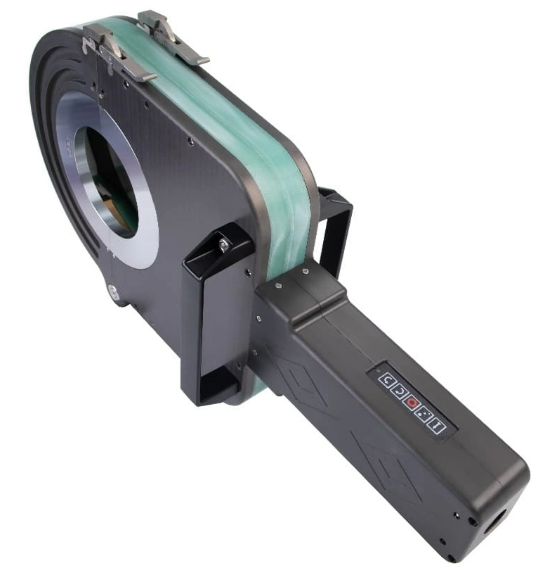

Closed Weld Head Kinematics

Enclosed weld heads clamp directly over thin-wall tubing, creating an entirely sealed inert gas chamber that prevents external oxygen intrusion during high-purity joining processes.

Open Weld Head Architecture

Open weld heads utilize an exposed rotating torch design with wire feed capabilities, engineered specifically for larger diameter thick-wall pipes requiring multi-pass heavy fabrication.

Microprocessor Control Calibration

Digital microprocessors store complex multi-level welding schedules, allowing operators to execute precise weld sequences across varying wall thicknesses with push-button simplicity.

Key Advantages of Orbital Welding Machine Deployment

Deploying an orbital welding machine guarantees 100% consistent weld penetration, eliminates metallurgical defects, dramatically increases production speed, and satisfies rigorous hygienic manufacturing standards.

The foremost operational advantage of an orbital welding machine lies in its absolute metallurgical consistency. Manual GTAW inherently suffers from operator fatigue, hand tremor, and variable torch positioning, leading to inconsistent sidewall fusion and root penetration depth. An automated orbital welding machine eliminates human physical variance entirely. Every weld bead executed under a verified program exhibits identical width, reinforcement height, and penetration geometry. In high-purity pharmaceutical piping where internal crevices harbor bacterial colonies, the completely flat, scale-free root pass created by an orbital welding machine represents the industry benchmark for sanitary compliance.

Production efficiency and defect reduction represent secondary critical benefits of orbital welding machine technology. Because the system controls arc voltage, travel speed, and pulse duration through closed-loop feedback, defect modes such as tungsten inclusions, lack of sidewall fusion, blowholes, and excessive porosity are virtually eradicated. High-volume manufacturing plants utilizing an orbital welding machine routinely report X-ray and borescope pass rates exceeding 99.5%, compared to 85% to 92% for manual pipe welders. Furthermore, high-frequency pulsing capabilities allow faster travel speeds without risking undercut, significantly shortening joint completion cycles.

To maximize continuous duty cycles during heavy-duty installation projects, engineering teams often integrate high-precision enclosed weld heads with advanced power sources. When working with thin-wall stainless steel or exotic alloys, deploying an AS170 Precision Orbital Tube Welder with Advanced Welding Head ensures exceptional arc stability, flawless shielding coverage, and rapid clamping turnaround times. This technological synergy drastically reduces heat input while maintaining optimal linear welding speeds across intensive plant construction schedules.

In addition to quality and speed, an orbital welding machine provides unmatched process traceability required by modern quality management frameworks. Advanced digital controllers log real-time operational metrics—including current, voltage, rotation speed, and purge gas pressure—for every individual weld joint. These parameters can be exported directly into quality assurance databases to generate automated weld execution records. In regulated industries governed by ASME Section IX, EN 14732, or FDA sanitary codes, this automated documentation capability reduces administrative audit overhead and eliminates manual record-keeping errors.

Uncompromising Metallurgical Consistency

The computerized motion control of an orbital welding machine guarantees uniform heat input, maintaining flawless weld geometry across hundreds of consecutive joints without operator fatigue.

Elimination of Internal Crevices

Precise backing gas control combined with automated arc length control produces perfectly flush root pass profiles that completely eliminate corrosion-prone crevices in ultra-pure fluid conduits.

Enhanced Safety in Hazardous Work Environments

Remote pendants allow technicians to operate an orbital welding machine from safe distances when working in confined spaces, high-altitude racks, or radiation-exposed containment zones.

Design Rationale and Customer Priorities: Why did our engineering team design ultra-compact closed weld heads? In complex European pharmaceutical modules, space between parallel pipe runs is frequently under 35 millimeters. Field data indicates that European contractors prioritize minimal radial clearance and rapid toolless collet changing above all else. By positioning the internal motor drive within a narrow aluminum housing, our orbital welding machine designs achieve a radial clearance of less than 30 millimeters, allowing full 360-degree rotation inside dense pipe racks without mechanical interference.

Key Disadvantages and Operational Constraints of Orbital Welding Machine Systems

The primary disadvantages of an orbital welding machine include substantial upfront equipment capital investment, stringent joint fit-up requirements, high setup complexity, and spatial access constraints.

While the quality benefits are undeniable, the capital expenditure required to acquire a complete orbital welding machine setup represents a significant barrier to entry. A fully equipped system—comprising an inverter power supply, multiple closed weld heads covering various size ranges, coolant units, and high-purity purge oxygen analyzers—demands substantial initial investment compared to traditional manual GTAW power sources. For small-scale fabrication shops or contractors with low joint volume, justifying the payback period requires careful economic evaluation based on long-term repair savings and labor reduction.

Another major operational constraint when operating an orbital welding machine is the absolute requirement for precision pipe preparation. Manual welders can easily adjust torch movement and filler input to bridge wide root gaps, misaligned pipe ends, or wall thickness variations. In contrast, an orbital welding machine requires perfectly square pipe cuts with zero burrs, face angles within 0.5 degrees, and zero internal mismatch (hi-lo). If the joint fit-up exhibits gaps exceeding 10% of the wall thickness, the automated electric arc will burn through or drop the weld puddle, causing catastrophic root defects.

Furthermore, physical accessibility on job sites poses severe operational challenges for an orbital welding machine. The mechanized weld head requires a specific radial and axial clearance around the pipe circumference to mount, clamp, and rotate freely. In tight retrofit environments, field-fabricated headers, or dense valve manifolds, there may not be sufficient physical clearance to position an enclosed weld head housing. In such spatial edge cases, technicians must resort to specialized compact heads or revert back to highly skilled manual pipe welders.

Strict Joint Edge Preparation Demands

Achieving successful automated welds mandates machine-facing tool preparation to eliminate burrs and achieve perfect squareness prior to clamping the weld head.

Operator Training and Programming Requirements

While physical manual dexterity is not required, technicians operating an orbital welding machine must undergo rigorous training in digital parameter manipulation, metallurgical gas purges, and arc physics.

Sensitivity to Environmental Conditions

Field operation of an orbital welding machine in dirty or windy environments requires temporary environmental shelters to prevent atmospheric drafts from disrupting inert shielding gas coverage.

Comparative Analysis: Orbital Welding Machine vs Manual TIG Welding

An orbital welding machine outperforms manual TIG welding in repeatability, speed, and defect rates, but manual TIG retains superior flexibility for non-standard joints and low-budget operations.

A rigorous engineering comparison between an automated orbital welding machine and manual TIG joining requires examining heat input mechanics, duty cycles, and total cost of quality. In manual TIG welding, arc length fluctuates continuously due to subtle hand movements, causing current and voltage spikes that alter local heat input. An orbital welding machine maintains a constant arc gap down to fractions of a millimeter via motorized voltage feedback or pre-set mechanical tungsten position settings. This precise distance regulation suppresses voltage spikes, ensuring highly consistent weld bead geometry around the entire tube circumference.

From an economic perspective, while the initial purchase price of an orbital welding machine is considerably higher, its operational cost per completed joint decreases rapidly as joint volume escalates. In high-density piping installations such as semiconductor fabrication plants requiring thousands of welds, automated joining reduces total labor hours dramatically. A single trained technician managing an orbital welding machine can complete up to three times more high-purity joints per shift than a master manual welder, while maintaining near-zero rework costs. Conversely, for low-volume repair work or non-standard pipe geometry, manual TIG remains the more flexible option.

To achieve peak efficiency during high-purity piping field installations, specialized contractors often utilize high-precision automated systems. Incorporating an advanced precision tube welding system enables technicians to standardize weld schedules across various alloy grades, guaranteeing predictable production outputs and eliminating human error in critical fluid infrastructure.

From a metallurgical perspective, heat management in manual TIG welding depends entirely on the operator's speed and rhythm, often resulting in overheating on the bottom 6 o'clock position due to thermal accumulation in the workpiece. An orbital welding machine solves this thermal accumulation issue by using multi-sector parameter programming. As the electrode rotates from the 12 o'clock top position down through 3 o'clock to the 6 o'clock bottom, the power supply automatically decreases peak current and modifies pulse ratios to prevent gravity-assisted puddle collapse.

Dynamic Multi-Sector Current Regulation

Modern orbital power supplies divide the weld joint into distinct angular sectors, dynamically lowering heat input in bottom positions to counteract gravitational fluid flow.

Labor Optimization and Skill Shift

Automated joining shifts reliance from scarce manual master welders to trained machine operators who focus on process oversight, quality control, and schedule management.

Total Cost of Quality Reductions

The upfront capital cost of an automated system is rapidly amortized by eliminating non-destructive testing failures, post-weld grinding, and expensive field re-works.

Industrial Applications Requiring an Orbital Welding Machine

Sectors demanding extreme cleanliness, zero-leak structural integrity, and high pressure ratings—such as biopharmaceuticals, semiconductors, aerospace, and nuclear power—mandate an orbital welding machine.

In the biopharmaceutical and food processing industries, piping systems carrying process water for injection (WFI), sterile steam, and active biological agents must possess ultra-smooth internal surfaces. Any root bead roughness, oxidation scale, or heat tint creates microscopic crevices where bacteria accumulate and form resilient biofilms. An orbital welding machine operating with high-purity internal argon purging yields internal surface finishes under 0.25 micrometers Ra, fully satisfying stringent ASME BPE sanitary standards. Consequently, orbital joining is the mandatory standard across global pharmaceutical manufacturing facilities.

Similarly, the semiconductor and microelectronics sector relies on an orbital welding machine to construct gas distribution systems for toxic, flammable, and ultra-high purity process gases such as silane, arsine, and phosphine. In these applications, leak-tight integrity is paramount; even micro-ppm leakage could trigger catastrophic explosions or poison delicate silicon wafers. Orbital joining ensures hermetic, zero-defect full-penetration joints across thousands of meters of 316L VIM/VAR stainless steel tubing, supporting the flawless production of advanced integrated circuits.

To meet the extreme quality benchmarks established in advanced industrial sectors, engineering teams choose highly reliable power sources and closed head configurations. Implementing an orbital tube welder with advanced closed welding head provides the mechanical rigidity and gas envelope isolation required to achieve perfectly repeatably oxidized-free micro-joints on high-purity gas lines.

In power generation, aerospace, and chemical processing, orbital welding machines join heavy-wall boiler tubes, heat exchangers, hydraulic fluid lines, and aerospace fuel transport piping. These high-stress environments subject joints to cyclic thermal fatigue and extreme internal pressures. By ensuring complete sidewall fusion and grain-refined microstructures without mechanical stress raisers, orbital joining guarantees long-term operational safety and prevents premature fatigue failure in critical energy infrastructure.

Biopharmaceutical Sanitary Piping

Automated orbital joining creates completely flush internal weld beads on stainless steel sanitary lines, preventing bacterial biofilm development in pharmaceutical production lines.

Semiconductor Ultra-High Purity Gas Infrastructure

High-purity orbital welding eliminates micro-particulate release and pinhole gas leaks in semiconductor fabrication gas delivery lines.

Aerospace Fuel and Hydraulic Line Fabrication

Aerospace manufacturing utilizes orbital welding to join lightweight titanium and nickel alloy fluid lines, delivering maximum vibration resistance under flight stresses.

Operational Best Practices and Parameter Optimization for an Orbital Welding Machine

Optimizing an orbital welding machine requires strict control over inner purge gas purity, tungsten electrode geometry, pulse synchronization, and scheduled maintenance.

Achieving flawless results with an orbital welding machine demands meticulous attention to purge gas quality. Oxygen content in the internal backing gas must be continuously monitored using a digital residual oxygen analyzer before initiating the electric arc. In high-purity stainless steel applications, oxygen concentration inside the pipe must drop below 5 parts per million (ppm) before welding commences. If residual oxygen exceeds 10 ppm, the intense arc temperature causes internal oxidation—commonly termed "sugarling"—which destroys the localized chromium oxide passive layer and initiates severe pitting corrosion during service.

Tungsten electrode preparation represents another vital operational parameter affecting arc stability and joint geometry. Operators must utilize precision diamond wheel grinders to ground tungsten tips to exact taper angles, typically between 30 and 60 degrees depending on wall thickness and desired arc width. A flatter tip angle produces a broader arc column with deeper penetration, whereas a sharp point concentrates current for narrow welds on thin-wall tubing. Cross-contamination must be avoided by reserving dedicated grinding wheels exclusively for ceriated or lanthanated electrodes.

Finally, long-term system reliability demands structured preventative maintenance protocols for the orbital weld head and power unit. Dirt, metallic dust, and spatters accumulate inside the rotor gear teeth over time, causing micro-stutter in rotational speed that degrades arc length stability. Cleaning internal drive gears with approved solvent cleaners, replacing worn copper ground brushes, and calibrating high-frequency arc initiation circuits every six months ensures continuous operational accuracy and extends equipment lifespan in rugged field environments.

Backing Gas Oxygen Monitoring

Utilizing precision trace oxygen analyzers ensures internal oxygen levels remain strictly under 5 ppm before arc ignition, guaranteeing scale-free root pass metallurgy.

Tungsten Tip Geometry Standardisation

Standardizing electrode taper angles and tip flats ensures predictable arc shape, consistent heat focus, and repeatable penetration depth across production batches.

Preventative Weld Head Maintenance Protocols

Routine gear cleaning, brush replacement, and coolant loop flushing prevent motor drag and maintain constant rotational velocity during continuous production operations.

Field Maintenance Guidelines: To maintain sub-millimeter arc length stability in field environments, clean the internal gear teeth of the enclosed weld head with isopropyl alcohol every 50 weld cycles. Never use petroleum-based lubricants inside the gas chamber, as organic residue vaporizes under arc temperatures, causing severe weld pool carbon contamination and pore formation.

Comprehensive Conclusion and Engineering Recommendations

In summary, the decision to implement an orbital welding machine hinges on balancing unyielding quality requirements against project capital budgets. For critical high-purity fluid conduits, semiconductor gas lines, and high-pressure energy systems, the unmatched repeatability, zero-defect rates, and 100% full-penetration performance of automated orbital joining make it an indispensable technology. While strict edge preparation and initial equipment costs require careful project planning, the long-term savings achieved through eliminated NDT failures, enhanced joint speed, and automated compliance logging deliver superior return on investment for modern B2B industrial infrastructure.
