What is Orbital Welding?

Views: 0     Author: Site Editor     Publish Time: 2026-08-10      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Orbital welding is a specialized automated Gas Tungsten Arc Welding process where an electric arc rotates mechanically through 360 degrees around a static cylindrical workpiece, such as a tube or pipe, to produce seamless, highly repeatable, high-integrity joints with controlled heat input and zero internal oxidation.

At a Glance

Section

Summary

What is Orbital Welding used for?

Explains primary industrial applications across high-purity sectors like semiconductor, pharmaceutical, aerospace, and energy, highlighting why liquid/gas purity mandates seamless orbital joint execution.

What Makes Up an Orbital Welding System?

Details the complete mechanical and electrical component architecture including power supplies, specialized heads, human-machine interfaces, and closed-loop cooling units.

Benefits of Orbital Welding

Provides a comprehensive parametric comparison and technical breakdown of superior metallurgy, heat control, process efficiency, and zero-defect quality control.

Types of Orbital Welding Heads

Examines structural differences, gas purging chambers, outer diameter sizing, and operational parameters between enclosed fusion heads and open wire-feed heads.

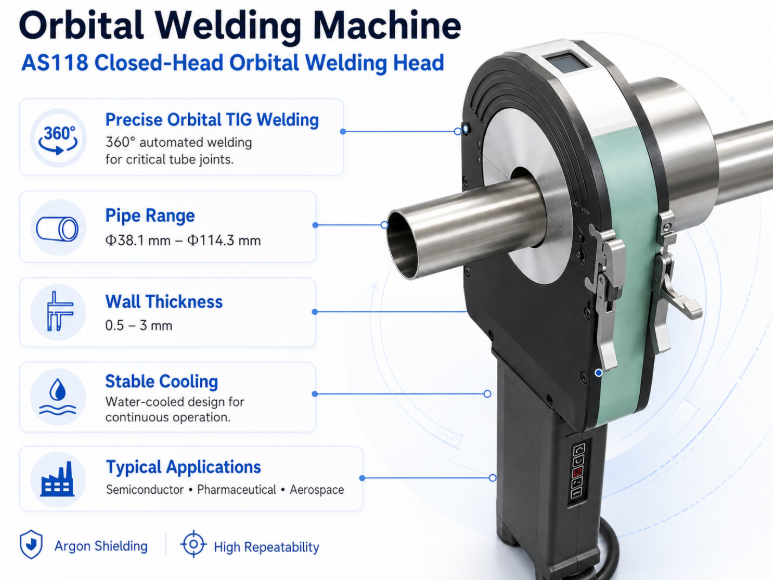

Orbital Welding Machine.png

What is Orbital Welding used for?

Orbital welding is used primarily for joinery applications demanding consistent, uncompromised structural integrity, full penetration, and ultra-high-purity internal surface finishes across critical piping and tubing networks.

In modern process industries, fluid and gas transfer systems are subjected to aggressive operating environments, including extreme pressure differentials, cryogenic or elevated temperatures, and corrosive process media. Manual welding methods struggle to maintain uniform bead width and root penetration when operating around a stationary horizontal or vertical pipe run, frequently creating internal concavity, micro-cracks, or tungsten inclusion artifacts. Using an industrial Orbital Welding Machine guarantees 360-degree rotational symmetry and precise current modulation, allowing engineers to meet severe code requirements under ASME BPE, AWS D18.1, and ISO 5817. The adoption of an advanced Orbital Welding Machine eliminates manual human positioning errors, making it mandatory for sectors where joint failure incurs immediate biopharmaceutical contamination, explosive chemical leakage, or semiconductor wafer batch destruction.

The operational requirement for automated orbital fusion spans several specialized industrial domains:

  1. Biopharmaceutical and Sterile Process Facilities rely on orbital tube joining to build WFI (Water for Injection) and clean steam distribution lines, where internal root surfaces must achieve an Ra roughness below 0.38 µm to stop biofilm formation and bacterial entrapment.

  2. Semiconductor and Ultra-High Purity (UHP) Microelectronics Manufacturing requires gas delivery lines welded under controlled closed-head argon purge, ensuring total freedom from atmospheric gas contamination down to parts-per-billion levels.

  3. Aerospace and Marine Power Systems deploy orbital equipment for high-pressure hydraulic lines and fuel delivery conduits, where vibration resistance and high fatigue strength are vital for long-term operational survival under severe cyclic loading.

From an engineering perspective, selecting the correct joinery system directly dictates field productivity and total lifecycle integrity. Industrial facilities using a high-spec Orbital Welding Machine consistently demonstrate superior real-time real-world reliability during hydro-testing and helium leak mass spectrometry testing. When tight clearance profiles present severe spatial bottlenecks in complex skid assemblies, field operators achieve zero-defect pass rates by deploying a compact solution such as the high-precision orbital welding head for critical joints, ensuring flawless full-penetration butt welds even within ultra-confined installation channels.

Industrial Sector

Primary Piping Application

Purity / Quality Standard Requirement

Typical OD Size Range (mm)

Semiconductor / UHP Microelectronics

Bulk & Specialty Gas Distribution Lines

SEMI F19, Ultra-Clean Internal Polish, < 5 ppb O2

6.35 mm - 114.3 mm

Biopharmaceutical & Biotech

WFI, CIP, SIP, and Fermentation Loops

ASME BPE, SF1/SF4 Finish (Ra < 0.38 µm)

12.7 mm - 152.4 mm

Aerospace & Defense

High-Pressure Hydraulics & Flight Lines

AWS D17.1, 100% X-Ray Volumetric Inspection

3.18 mm - 38.1 mm

Power Generation & Nuclear

Boiler Superheater & Condenser Heat Exchangers

ASME Section III / IX Code Compliance

19.05 mm - 76.2 mm

Maintenance Guidelines & Purge Tip: To guarantee internal root integrity during UHP piping runs, purge gas oxygen concentration must be continuously monitored using an optical trace oxygen analyzer attached to the exhaust plug. Never initiate the arc program until trailing purge gas registers oxygen levels below 5 ppm. Maintaining pristine inner gas back-pressure balances the molten weld pool against gravitational sag during the overhead 12 o'clock to 6 o'clock positional travel segments.

What Makes Up an Orbital Welding System?

An orbital welding system consists of an integrated modular architecture comprising an inverted programmable inverter power supply, an automated motorized orbital weld head, a digital human-machine interface, and a closed-loop coolant recirculation module.

The operational efficiency of an automated Orbital Welding Machine depends entirely upon the synchronized interaction between its electrical controller and mechanical rotation assemblies. Unlike manual power sources, an orbital control system coordinates multi-axis motion, high-frequency arc ignition, dynamic current pulsing, motorized wire feed rates, and real-time purge gas management within a single closed-loop control algorithm. The automated system continuously balances heat input relative to the spatial position of the electrode as it travels around the static cylindrical component. This precise balance avoids excessive melt-through at the 6 o'clock position while maintaining full joint root fusion at the 12 o'clock overhead entry point.

System integration centers around high-speed digital communications between the internal microcontroller and the drive motor optical encoders embedded within the fixture frame. A modern Orbital Welding Machine uses multi-level current pulsing, where peak current periods melt the base metal and control penetration, while background current periods allow the weld puddle to freeze, maintaining dimensional stability. To achieve high process repeatability across thousands of field joints, hardware sub-assemblies must feature sub-millimeter manufacturing tolerances, thermal isolation layers, and high electromagnetic shielding to protect microcontrollers from high-frequency arc start interference.

When selecting systems for plant expansion or field maintenance projects, European and North American EPC contractors prioritize modular power units that feature universal voltage input auto-sensing and integrated digital data logging. Incorporating an advanced Orbital Welding Machine into automated construction workflows guarantees full traceability, as modern units log arc voltage, travel speed, real-time current, and gas flow rates directly to non-volatile memory for QA auditing. For high-density pipe racks where radial clearance drops below 50 mm, technicians rely on specialized tooling setups including the precision automated orbital joint welding tool to prevent physical interference with adjacent structural members.

Power Supply

The power supply acts as the central command node of an automated Orbital Welding Machine, supplying precise pulsed direct current (DCEN) and regulating argon purge sequencing through solid-state digital controllers.

Weld Head

The weld head is the precision mechanical fixture that firmly clamps the stationary tube workpieces while driving the tungsten electrode around the joint centerline along a zero-backlash planetary gear drive track.

Human-Machine Interface (HMI)

The human-machine interface offers operators an intuitive digital interface to write, store, adjust, and audit multi-sector welding schedules based on material grade, wall thickness, and outer diameter parameters.

Cooling System

The closed-loop liquid cooling system continuously circulates high-purity deionized coolant fluid through the internal water jackets of the weld head to maintain continuous 100% duty cycle operation without thermal distortion.

Benefits of Orbital Welding

The primary benefits of orbital welding include perfect joint repeatability, superior metallurgical grain structure, zero internal oxidation, high productivity, and complete digital weld traceability required by international regulatory codes.

From an engineering material science perspective, automated orbital processing minimizes the Total Heat Input (THI) delivered to the heat-affected zone (HAZ). Manual welding typically leads to extended arc dwell times, causing wide HAZ profiles, heavy carbide precipitation in stainless steel alloys (such as 316L), and severe thermal distortion across thin-walled tubing. Utilizing a digital Orbital Welding Machine allows process engineers to program precise sector-specific current levels. By dividing the circular joint path into four or more distinct quadrant sectors, the power source dynamically scales back current levels as the base metal absorbs heat, preventing weld pool collapse while ensuring 100% root fusion.

  1. Unmatched Quality Control and Repeatability: Human operators face physical constraints such as hand tremors, visual fatigue, and awkward positioning when working in tight plant environments. An automated Orbital Welding Machine follows exact digital motion vectors, executing every weld with identical arc length, rotation speed, and current pulsing, keeping defect rates below 0.1%.

  2. Accelerated Construction Schedule and Labor Cost Optimization: While manual high-purity TIG welding requires highly skilled certified specialist welders, an operator trained on an automated Orbital Welding Machine can set up, purge, and execute consistent welds in a fraction of the time, dramatically shortening construction timelines on major plant installations.

  3. Compliance with Sanitary and Cleanroom Requirements: In UHP process lines, internal concavity, discoloration, or oxidation spots trap bacteria or release particulate contamination into process streams. Closed-chamber orbital weld heads maintain total inert gas isolation, producing smooth, silver-bright weld roots that eliminate mechanical grinding or post-weld reaming steps.

European pharmaceutical equipment builders consistently prefer enclosed orbital configurations over open-arc systems due to strict ASME BPE compliance rules. To maintain flawless surface metallurgy on heavy-wall process lines, modern industrial teams pair their power units with specialized hardware like the closed orbital fusion weld head for thin-wall tubing. This integration guarantees full inert gas coverage during high-current pulses, preventing micro-fissures and oxide sugar formation across heat-sensitive stainless steel alloys.

Operational Metric

Manual TIG Field Joinery

Automated Orbital Welding Machine

Weld Repeatability & Consistency

Variable (Subject to operator fatigue/skill)

Deterministic (> 99.8% identical profile compliance)

X-Ray / NDT Reject Rate

Typically 3.0% - 8.0% in tight quarters

Consistently < 0.5% across production runs

Internal Heat-Affected Zone (HAZ)

Wide, irregular, prone to discoloration

Narrow, highly localized, fully protected by purge

Parameter Traceability

Manual logsheets (Subject to human error)

Automated digital record per joint (ISO/ASME export)

Installation Speed (Joints per Shift)

15 - 25 joints (Standard 2-inch line)

60 - 100+ joints (Standard 2-inch line)

Types of Orbital Welding Heads

Orbital welding heads are classified into two primary structural categories: closed (fusion) weld heads which enclose the joint in an isolated inert gas chamber, and open weld heads which use mechanical tracking and external filler wire feeds.

Selecting between closed and open orbital heads depends on tube outer diameter, wall thickness, metallurgic composition, and structural clearance limitations. Closed-chamber orbital heads surround the entire pipe joint within a sealed rotor body filled with high-purity shielding gas (typically Grade 5.0 Argon). As an electric arc is drawn from the rotating tungsten electrode, the sealed housing prevents ambient oxygen ingress, producing clean, oxide-free weld surfaces on thin-walled tubing without needing added filler wire (autogenous welding). Using a closed head with a compact Orbital Welding Machine ensures high thermal stability and protects the operator from direct UV light and stray heat radiation.

Conversely, open orbital heads are designed for medium-to-heavy wall thickness piping systems where single-pass autogenous fusion is insufficient to bridge joint gaps or satisfy structural load requirements. Open heads clamp directly onto the pipe exterior using specialized shoe assemblies, exposing the weld area to external view while employing a wire feed motor to inject cold or hot filler wire directly into the molten pool. These systems often integrate Automatic Arc Voltage Control (AVC) and electronic arc oscillation mechanisms to execute multi-pass root, fill, and cap welding cycles on thick-wall schedule 40/80 pipe runs.

Practical engineering experience shows that client teams in Western Europe favor closed heads for sanitary food, beverage, and semiconductor installations under 114.3 mm OD due to their unmatched speed and compact radial envelope. When choosing equipment setups, mechanical contractors select high-grade closed-chamber heads to prevent arc distortion caused by ambient draft currents within open job site environments. This ensures consistent root pass execution across all rotational sectors.

Design Feature / Parameter

Closed (Fusion) Orbital Weld Heads

Open (Filler Wire) Orbital Weld Heads

Primary Joining Mechanism

Autogenous Fusion (No Filler Wire)

Multi-Pass with Automated Filler Wire Feed

Applicable Wall Thickness Range

0.5 mm - 3.0 mm (Thin-Wall Tubing)

3.0 mm - 50.0+ mm (Heavy-Wall Piping)

Shielding Gas Environment

Completely Enclosed Sealed Gas Chamber

External Gas Nozzle with Local Purge Trail

Radial Clearance Envelope

Ultra-Compact (Low Clearance Requirements)

Larger Profile (Requires Clearance for Feed Motor/AVC)

Cooling Mechanism

Integrated Internal Water-Cooling Jacket

Air-Cooled or External Liquid Line Routing

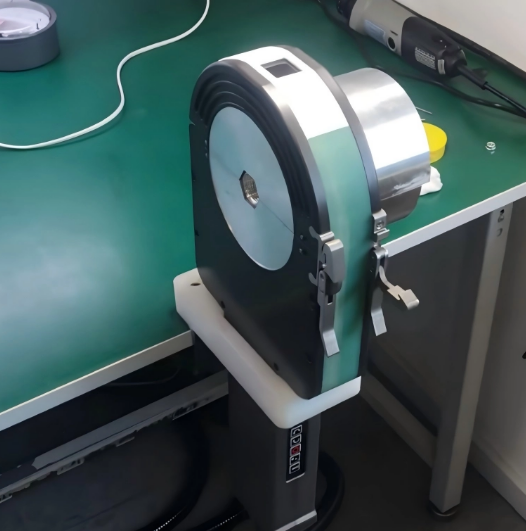

Closed (Fusion) Weld Heads

Closed fusion weld heads completely isolate the joining zone within a sealed inert gas environment, making them the industry standard for autogenous, oxide-free tube welding in sanitary and UHP manufacturing operations.

Open Weld Heads

Open weld heads feature robust mechanical mounting tracks, integrated wire feed control motors, and multi-axis torch adjustment systems designed to execute heavy-wall multi-pass pipe joinery in demanding field environments.

Conclusion

Automated orbital joining represents a vital technology for modern industrial process engineering, combining mechanical precision, digital control, and advanced metallurgy. By substituting manual, variable welding procedures with a high-performance Orbital Welding Machine, manufacturing plants and construction sites achieve repeatable, code-compliant, zero-defect pipe and tube joints. Whether installing ultra-clean UHP lines in semiconductor facilities or joining heavy-wall alloy piping in power generation stations, leveraging the correct orbital weld head architecture guarantees long-term operational safety, absolute process purity, and optimized total cost of ownership across all critical piping networks.
