10H

Product Introduction

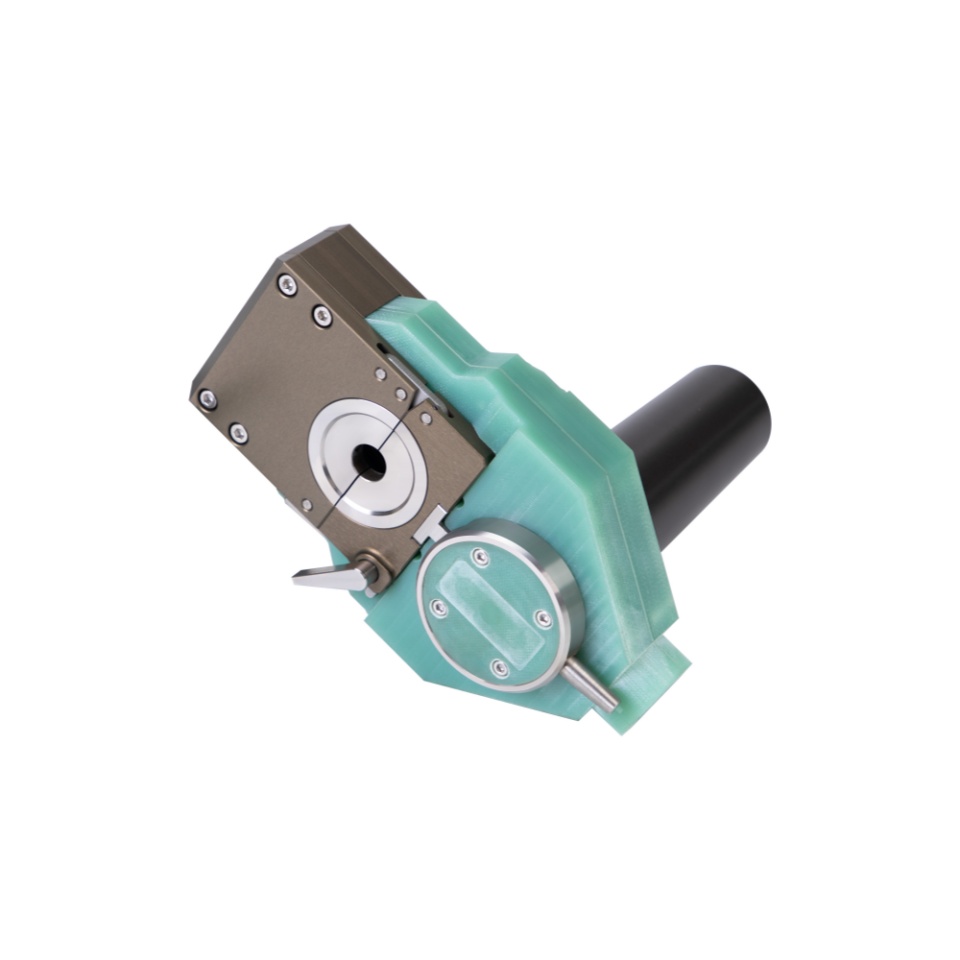

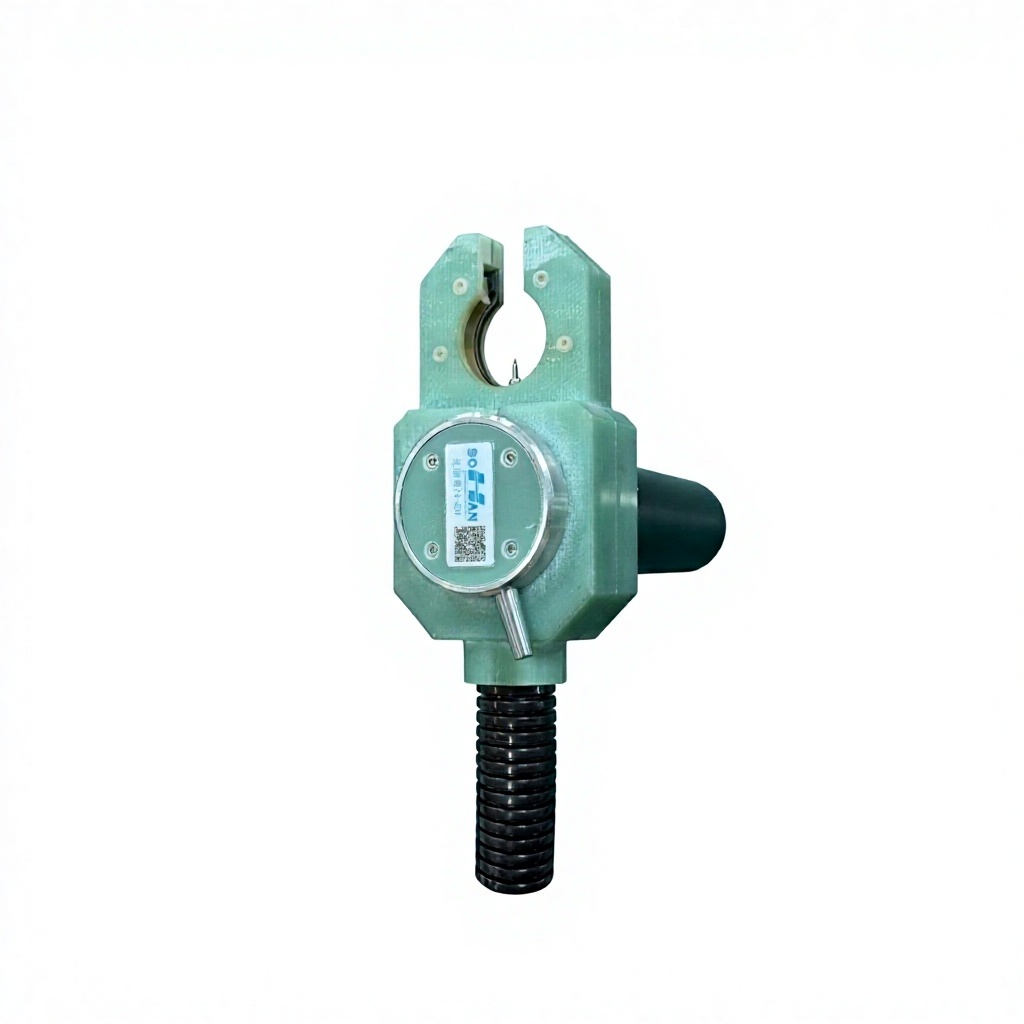

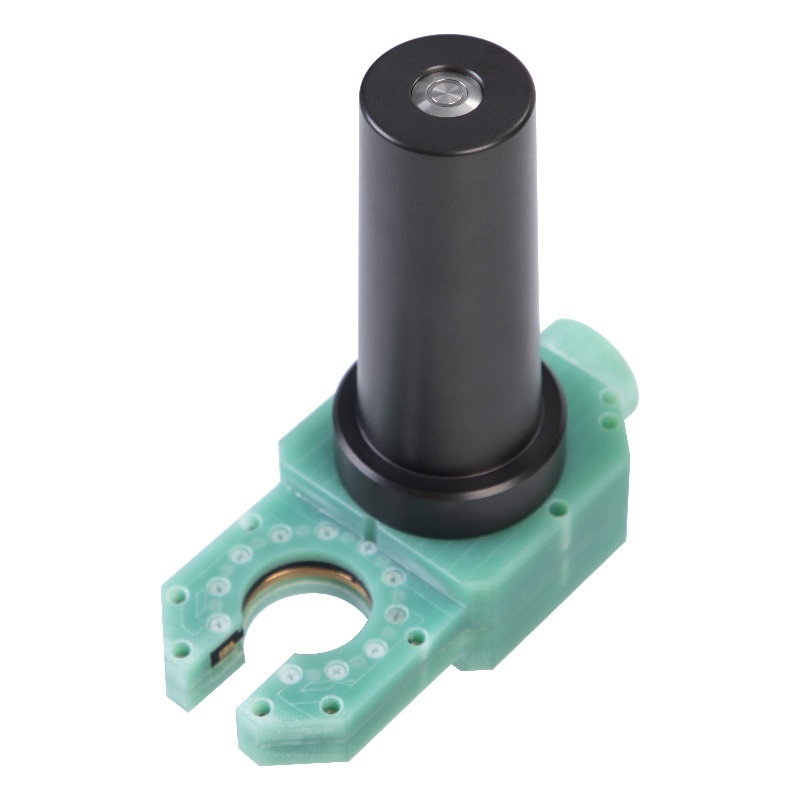

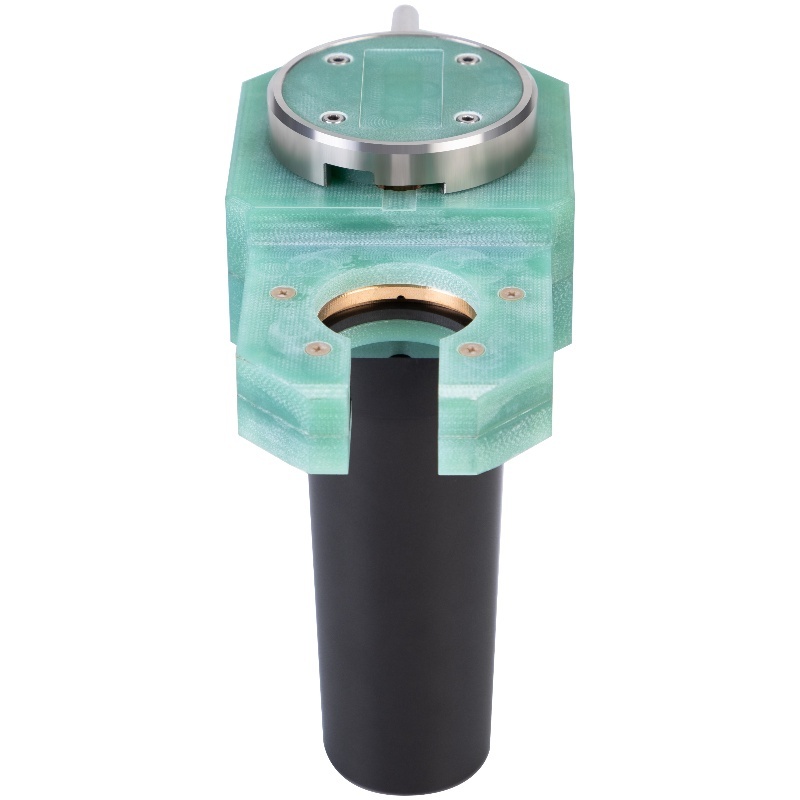

The 10H weld head is a welding unit specifically designed for small-diameter tubing and fittings, widely utilized in industries such as semiconductors, electronics, laboratories, and specialty gas piping. The weld head is lightweight, stable, and durable, and features a circulating water cooling system to ensure continuous operation.

Product Advantage

1. Orbital welding machine featuring a split-unit design, the lightweight weld head is ideally suited for use within clean piping systems and confined spaces.

2. Utilizing ultra-pure argon shielding, automatic tig welding machine of the system ensures oxide-free weld seams that meet the ultra-high leak-tightness standards required for helium leak testing.

3. Automatic closed head Precise control over pre-flow and post-flow gas sequences completely eliminates weld oxidation, making the unit perfectly suited for sealing applications in the pharmaceutical and high-purity gas industries.

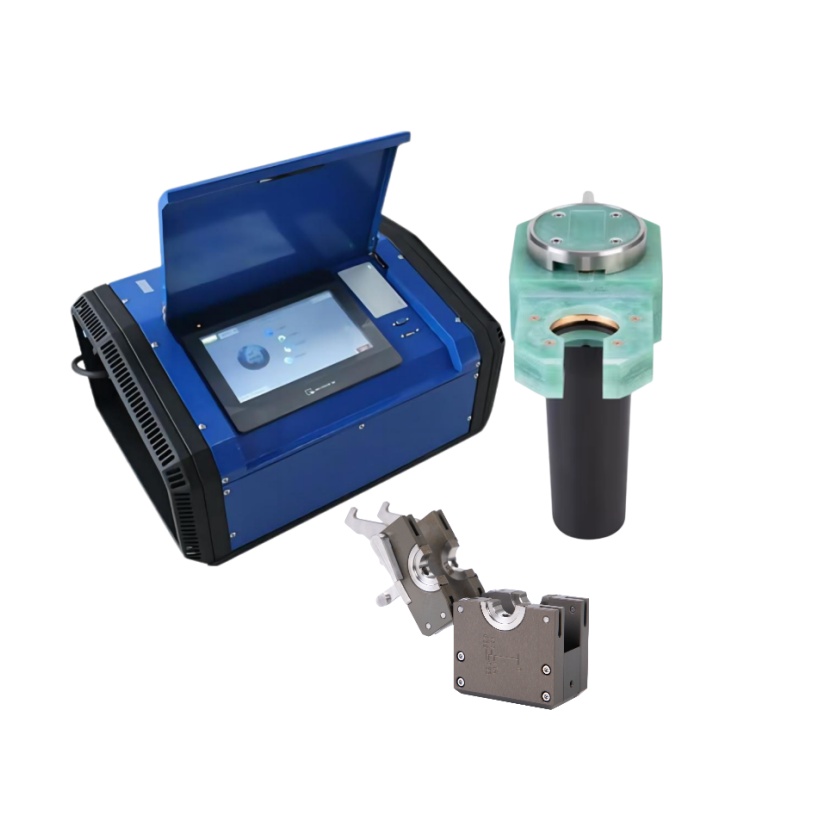

4. The entire system features a modular architecture, with the weld head and power source separated to facilitate ease of operation.

Technical Parameters

Product Uses

1. Specialty Electronic Gas Piping Industry: Utilizes thin-walled, seamless stainless steel tubing for the conveyance of high-purity specialty process gases; welding operations are conducted within an enclosed chamber equipped with a dual-channel argon gas shielding system.

2. Laboratory High-Purity Gas Piping Industry: Involves extremely small-diameter tubing where precise alignment is impossible to achieve manually; employs compact, enclosed welding heads to execute single-sided welds that achieve double-sided formation.

3. Semiconductor Industry: Demands ultra-high-purity piping systems featuring continuous, fully enclosed argon gas shielding throughout the process to ensure oxidation-free and burr-free inner surfaces, thereby meeting the stringent environmental control requirements of cleanroom environments.

Product Operate Guide

1. Inspection: Ensure water, electricity, and argon are normal; clean the pipe and pipe ends.

2. Pipe installation: Align the fittings properly and install the argon-filled plug.

3. Mounting the machine head: Fix the 10H machine head at the weld seam and center the tungsten electrode.

4. Pre-pressurization: Vent internally and externally, pre-pressurize for 30–60 seconds.

5. Set parameters: Select specifications on the panel and run an idle cycle.

6. Start welding: One-key automatic welding in all positions.

7. Completion and disassembly: Turn off gas and power, remove the machine head and workpiece.
