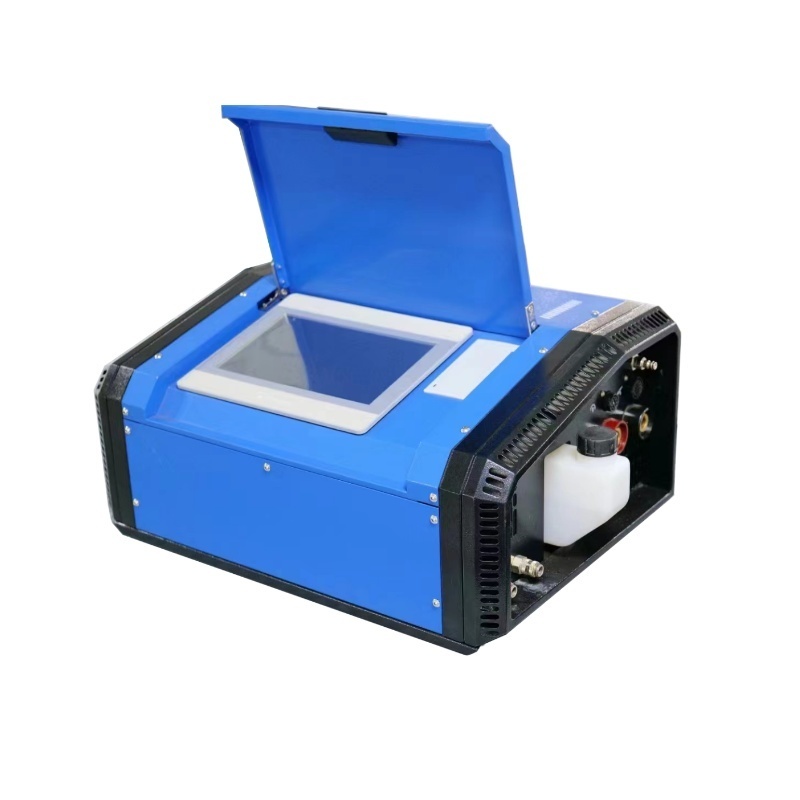

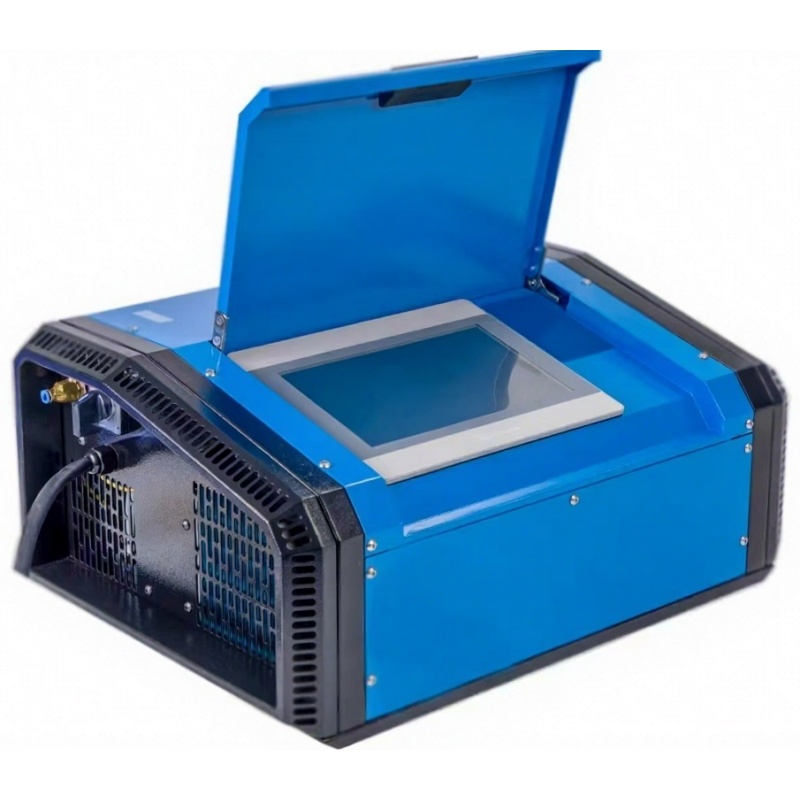

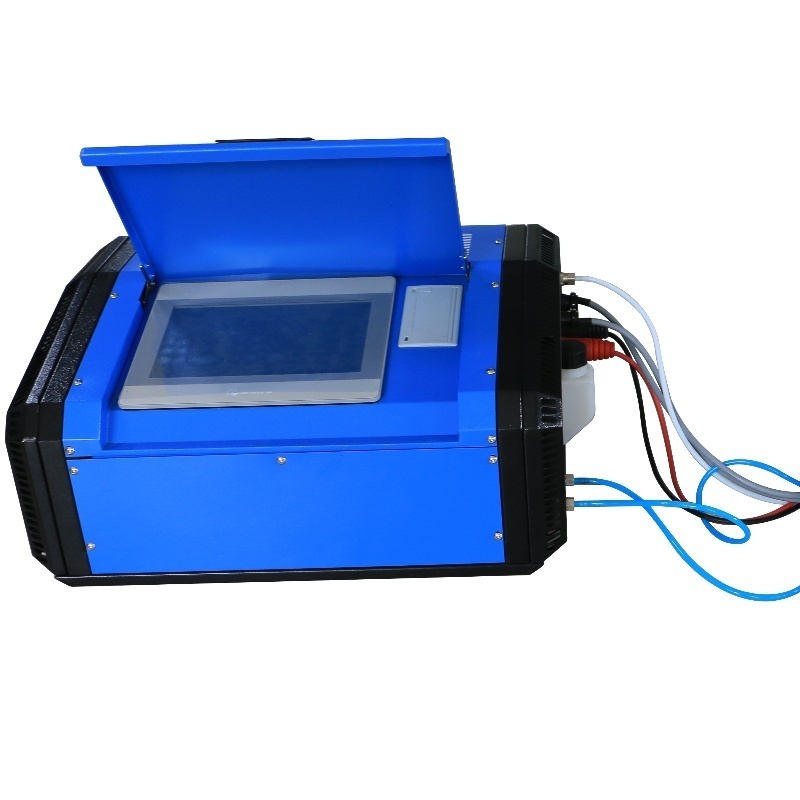

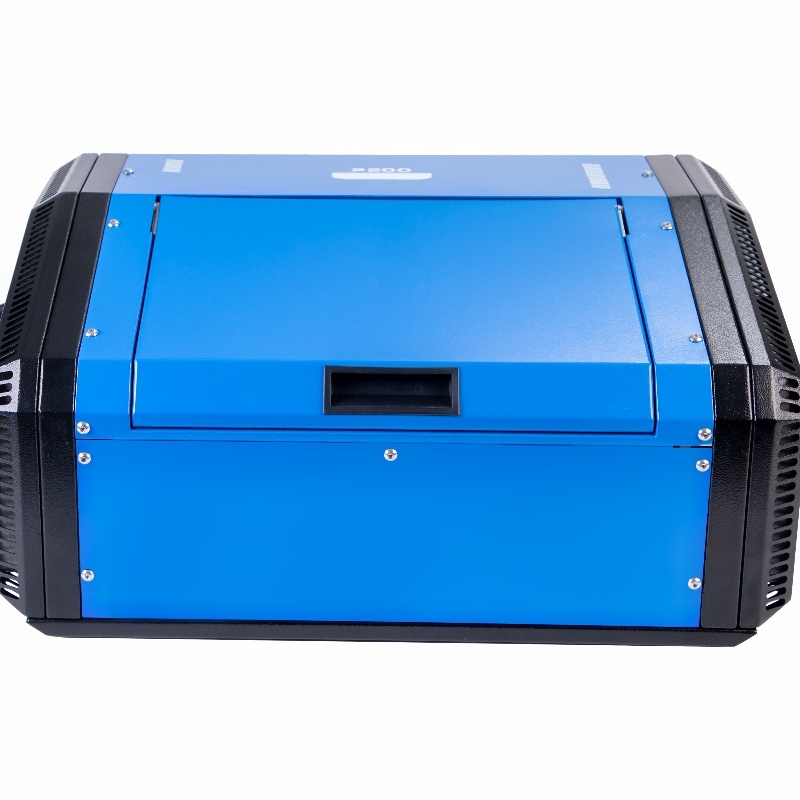

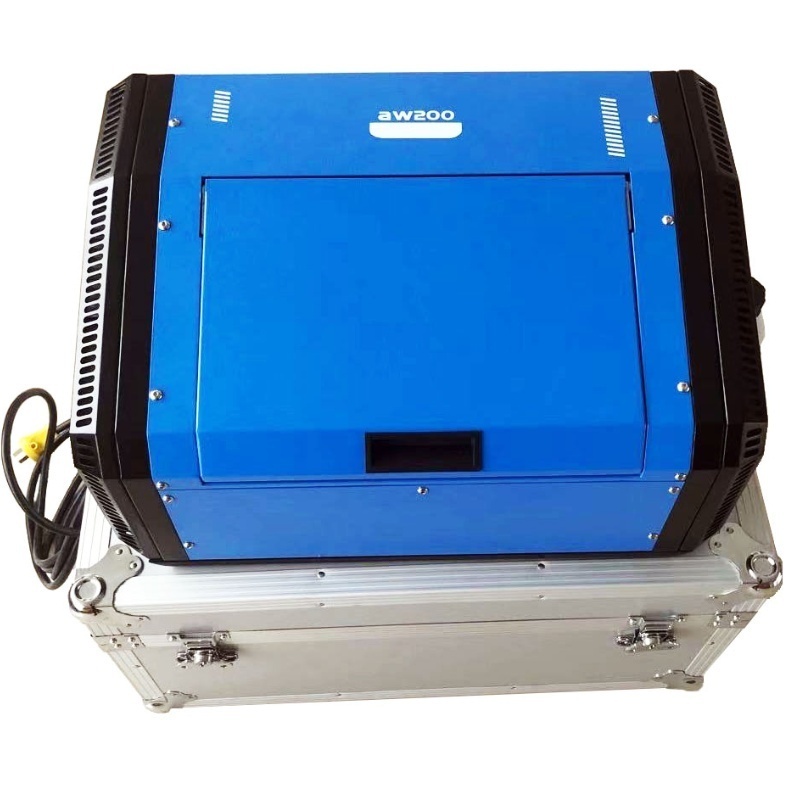

AW200 Power Source

Product Introduction

The AW200 intelligent welding power supply boasts high-end configuration and user-friendly operating software, creating industry-leading automated welding equipment.

The AW200 digital power supply features a 10-inch color touch screen and a high-end Siemens CPU, offering a comfortable human-machine interface and sensitive data transmission. It can precisely monitor and adjust multiple parameters of the welding machine, including current, pulse, speed, and gas.

Product Advantage

1. The AW200 intelligent welding power supply is compatible with closed pipe automated welding heads manufactured by Wuxi BoHan Company: 5H, 10H, AS40, AS80, AS118, AS170, and T12.

2. Optimal Configuration: Siemens TIA Portal fully integrated automation engineering software, a dedicated programming and debugging platform for S7 series PLCs, enabling integrated operation of hardware configuration, program writing, and parameter debugging.

3. Automatic Programming: Automatically generates matching parameter programs based on pipe diameter and wall thickness, simple, quick, and easy to adjust.

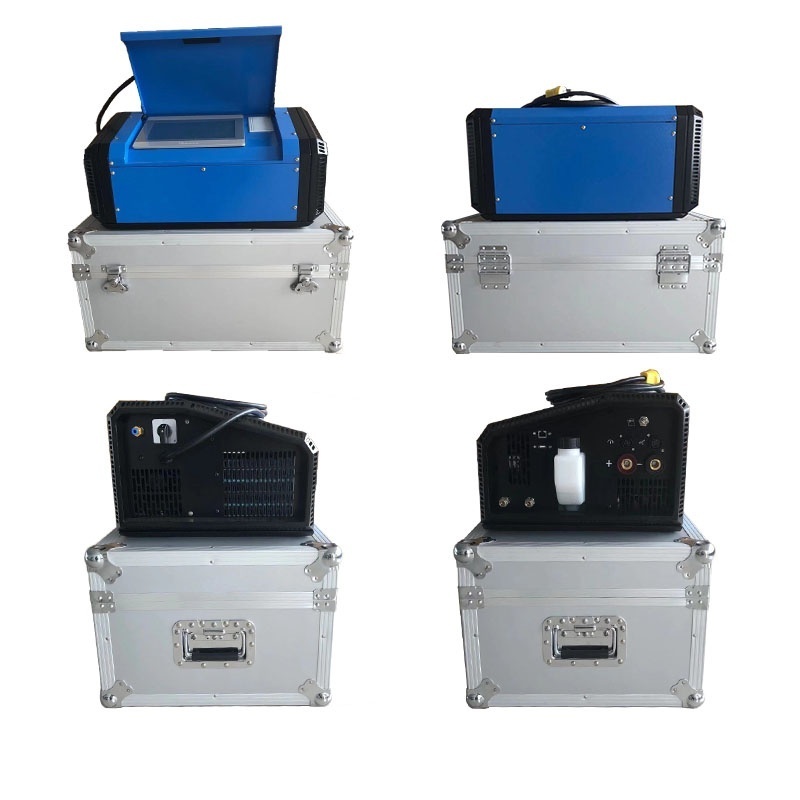

4. Lightweight and Portable: Small automatic power supply size and light weight, easy to move and carry, net weight 18KG.

5. Parameter Storage: Features parameter saving and printing capabilities, capable of storing and retrieving 70 programs.

6. Modular Structure: Modular design facilitates maintenance and servicing.

Technical Parameters

Product Uses

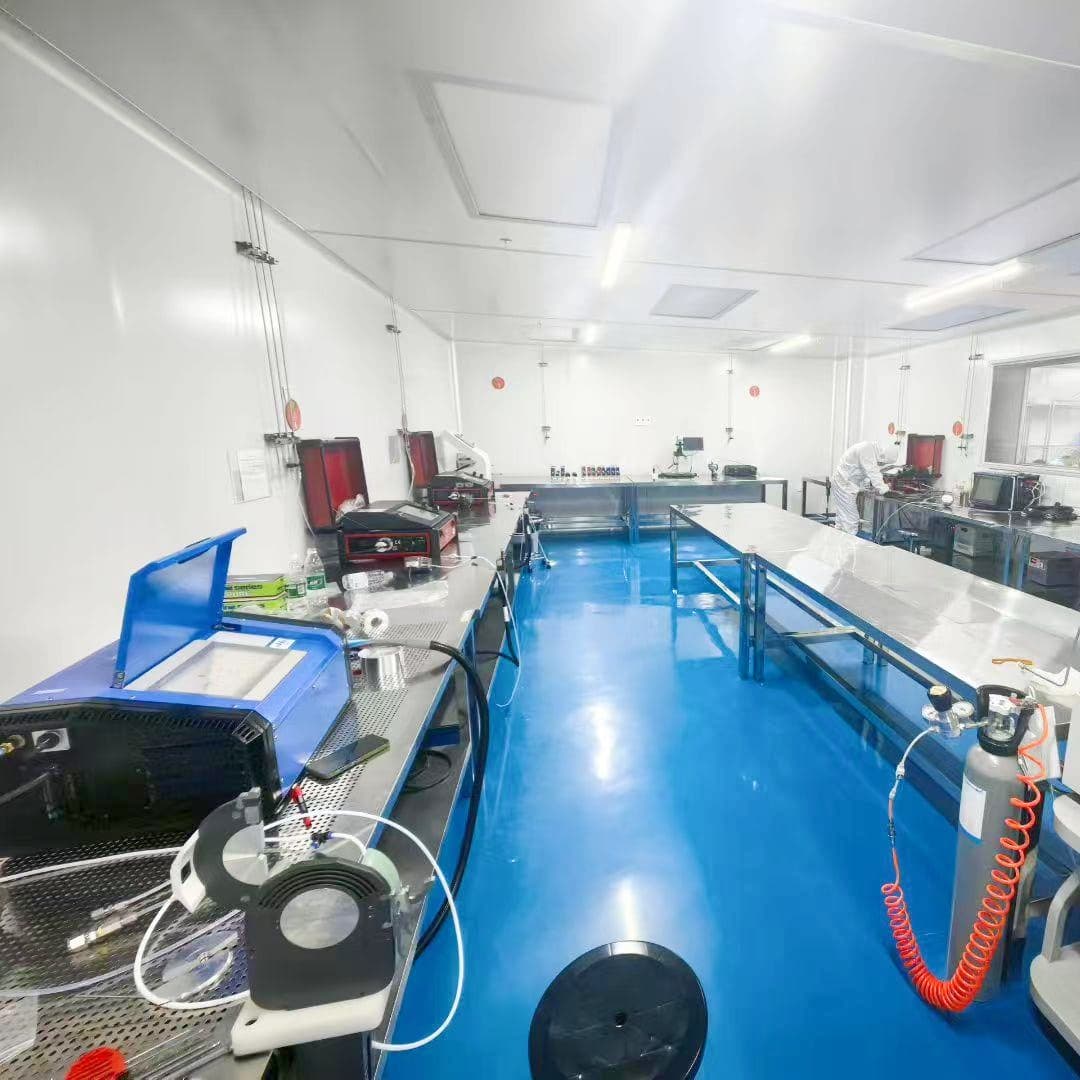

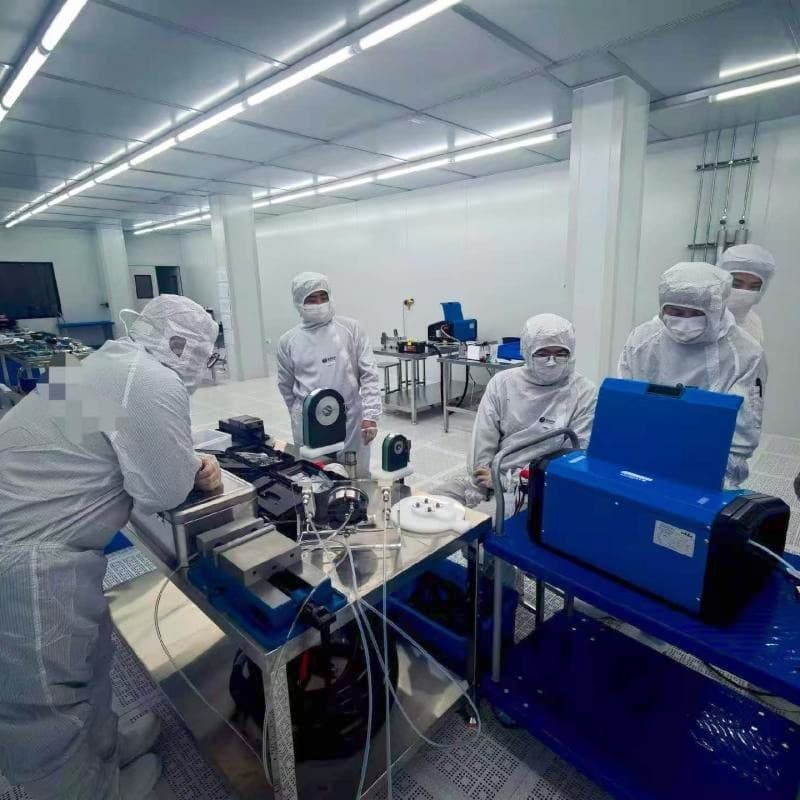

Semiconductor Industry (Highest Cleanliness Class): Utilizes a closed orbital tube welder, ensuring a fully sealed welding process that completely prevents dust ingress; the weld bead is smooth and burr-free, with no discoloration on the inner wall.

Biopharmaceutical Industry: Features a closed chamber design that prevents weld spatter and fumes from contaminating the interior of the tubing; the weld seam is smooth with no dead spaces, preventing bacterial accumulation and withstanding repeated high-temperature sterilization cycles.

Medical Device Industry: Employs a compact, enclosed welding head suitable for installation on confined workspaces; utilizes precision micro-current welding to ensure extremely low leak rates.

Product Operate Guide

● Retrieve the main power unit and the welding head.

● Connect the welding head's cable plug to the main power unit.

● Turn on the power switch.

● Select the appropriate clamp based on the pipe diameter and wall thickness.

● Mount the clamp onto the welding head.

● Remove the tungsten electrode, sharpen its tip, then install it into the welding head and adjust its position.

● Secure the pipe component onto the welding machine.

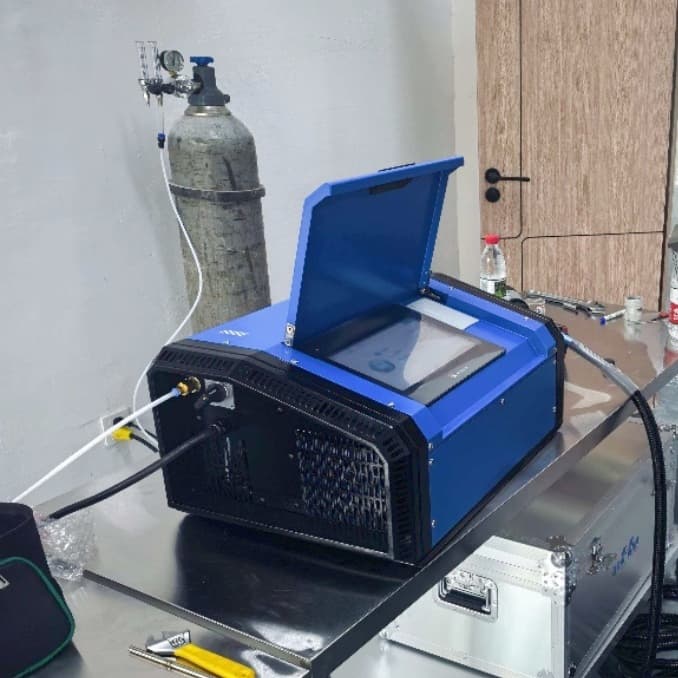

● Purge one end of the pipe component with pure argon gas while sealing the other end with aluminum foil to prevent air ingress.

● Set the welding parameters based on the pipe diameter and wall thickness (parameters can be generated automatically with a single key press).

● Press the "Start" button.

● Once a full welding pass is complete, open the welding head; the welding process is now finished.
