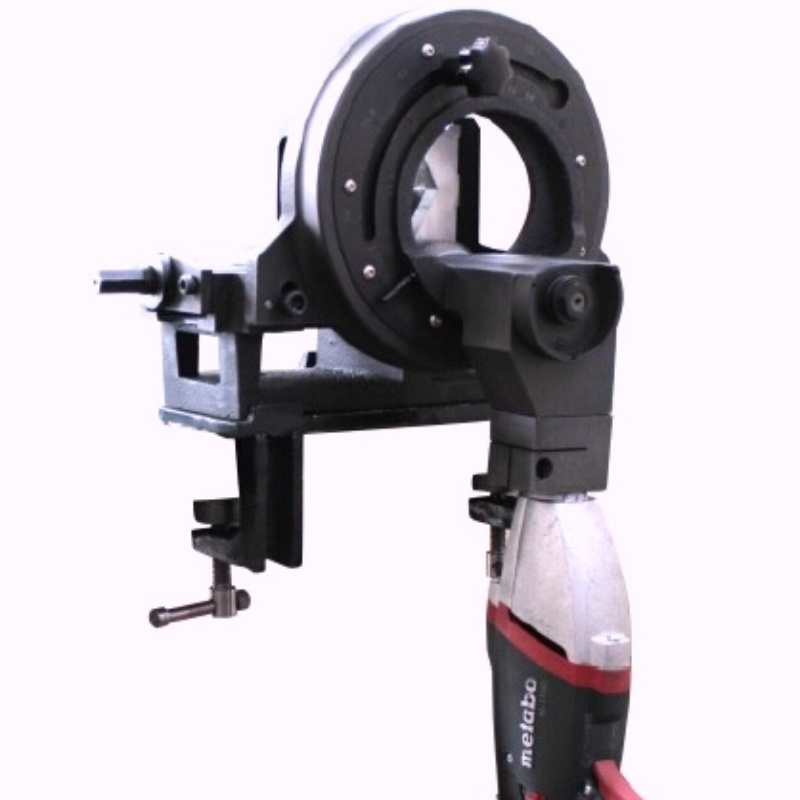

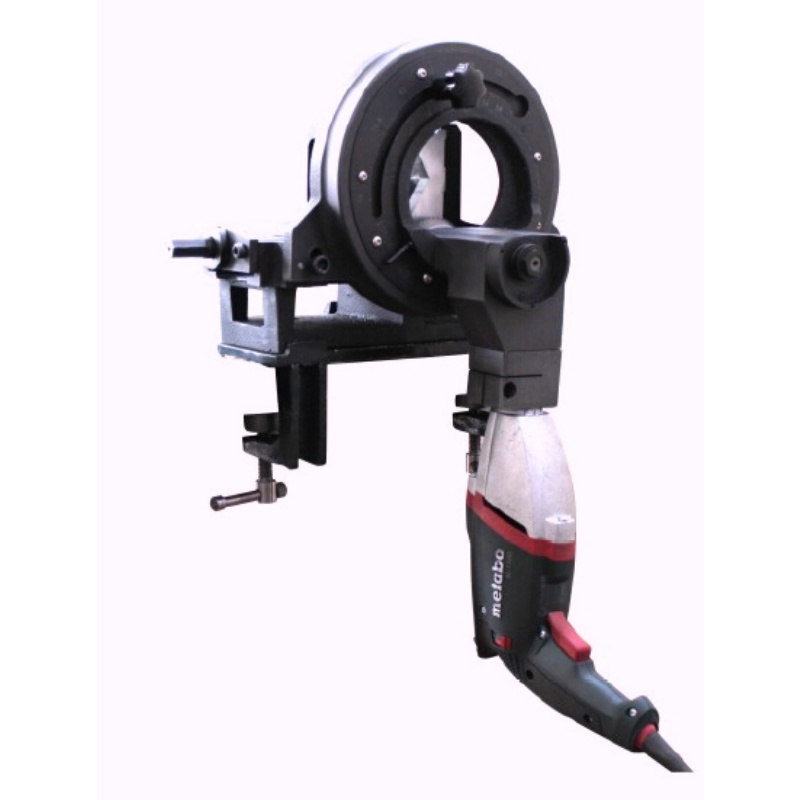

The 3-inch pipe cutting machine is securely mounted on a platform and is capable of cutting pipes ranging in diameter from φ6 to 80 mm, fabricated from materials such as stainless steel, carbon steel, and titanium alloys. The resulting cuts are perpendicular to the pipe axis—smooth, clean, and free of burrs—enabling the vast majority of cut pieces to proceed directly to seal welding following a preliminary tack weld.

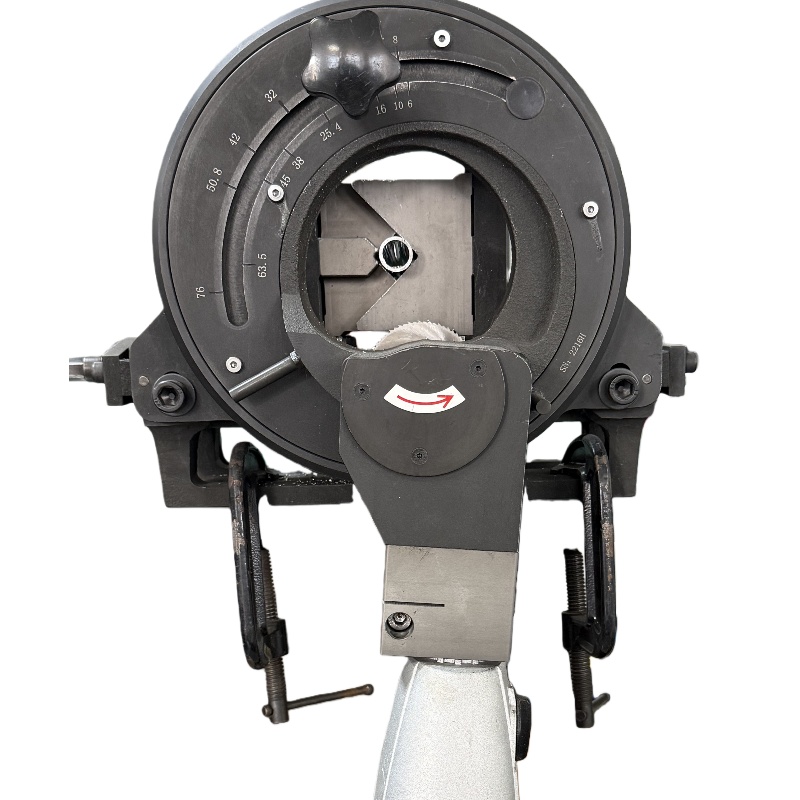

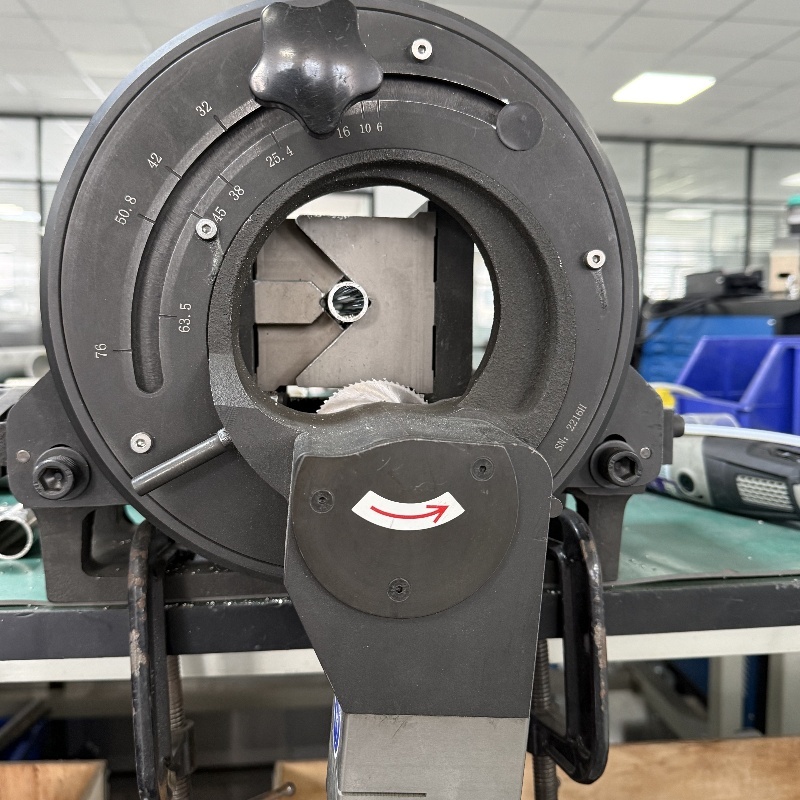

1. Planetary tube cutting machine: Handwheel-operated with concentric clamping.
2. Portable and labor-saving; requires no prior training—simply pick it up and use it immediately, saving on labor costs.

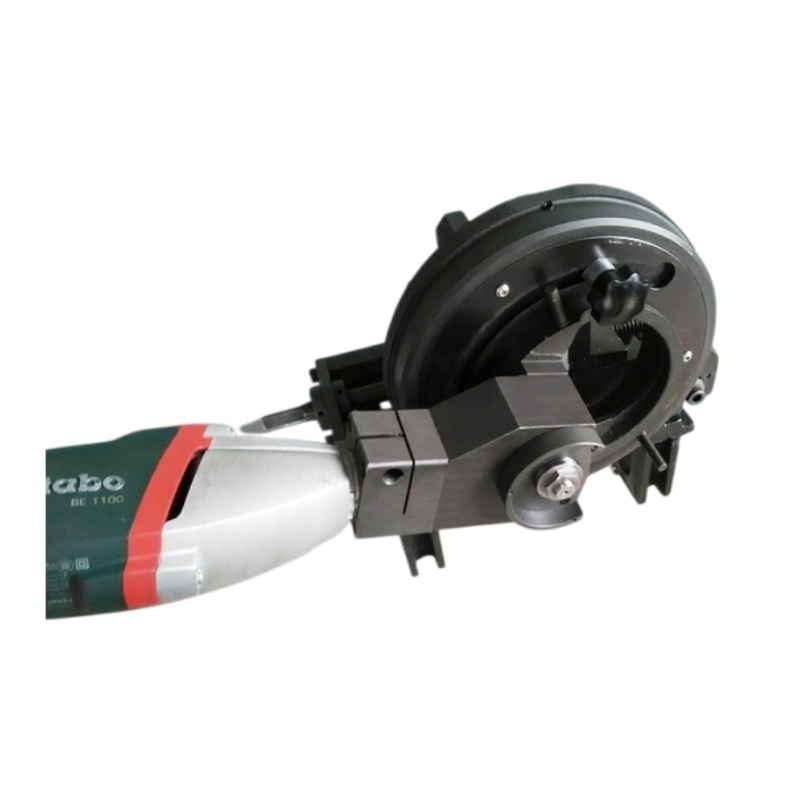

3. High cutting efficiency: The cutting blade is positioned just 15mm away from the clamping mechanism.
4. During operation, the blade orbits the tube once to complete the cut in a single pass; the resulting cut is flat and burr-free, allowing for direct butt welding.
5. Effectively minimizes pipe vibration, thereby enhancing cutting precision.
| Model | CM3.0 | CM5.0 |
| Power Source | AC 220V 50/60Hz | AC 220V 50/60Hz |
| Power | 1010W | 1300W |
| Processable Materials | Stainless Steel, Low-Alloy Steel, Aluminum | Stainless Steel, Low-Alloy Steel, Aluminum |
| Pipe Diameter Range | 12.7-76.2 mm | 19-135 mm |
| Rotation Speed | 8-45 r/min,23-40 r/min | 30-200 r/min |
| Operating Noise Level | 88db | 88db |
| Max.Cutting Wall Thickness | 3mm | 3mm |
| Weight | 40kg | 68kg |
| Dimensions | 390x290x560 mm | 525x270x667 mm |
1. Pipe Prefabrication Plants: Primarily utilized for the prefabrication of piping systems in gas, drainage, chemical, and power plant sectors; features high-volume, fixed-length pipe cutting, and integrates seamlessly with automated assembly lines for automatic pipe cutting and butt-welding operations.
2. Stainless Steel Products Industry: Caters to manufacturers of sanitary fittings, kitchenware tubing, and decorative round pipes; enables high-precision, burr-free cutting of thin-walled stainless steel.
3. Oil & Gas and Heavy Shipbuilding Industries: Handles thick-walled seamless steel pipes and alloy steel pipes for prefabrication and cutting; supports modular pipeline processing directly at project sites. Ideal for high-volume pipe cutting applications, serving as an efficient replacement for manual sawing methods.

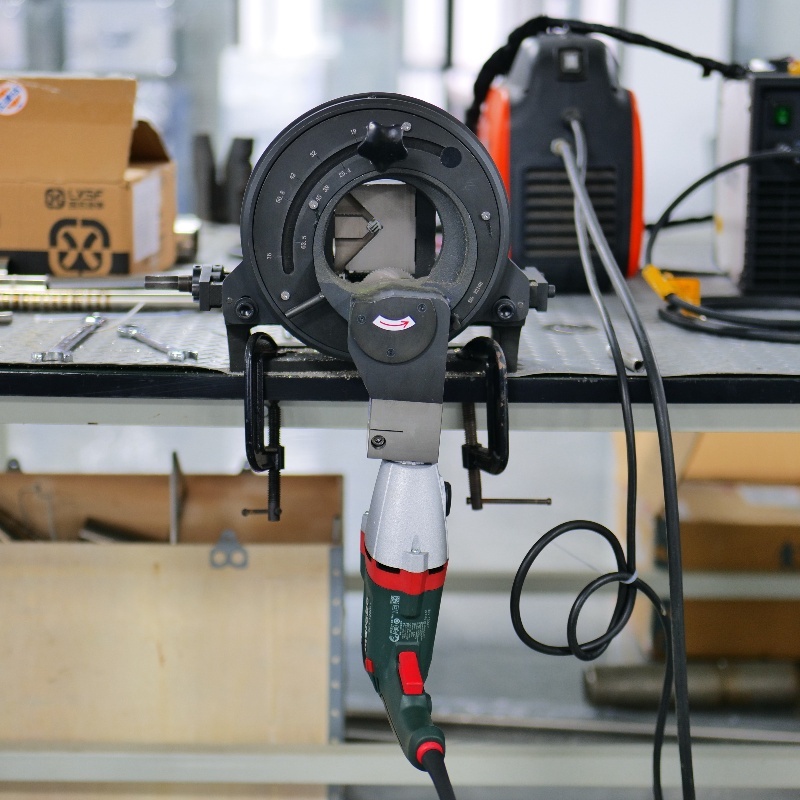

1. Fix the pipe cutting machine on the platform, then secure the blade.
2. Fix the pipe fitting on the pipe cutting machine.
3. According to the size of the pipe fitting, secure it properly, and cut accurately according to the length of the pipe fitting.
4. The clamp locks the pipe fitting to prevent deviation due to vibration during cutting.
5. The saw blade performs the cutting, and it is completed after the cut.
