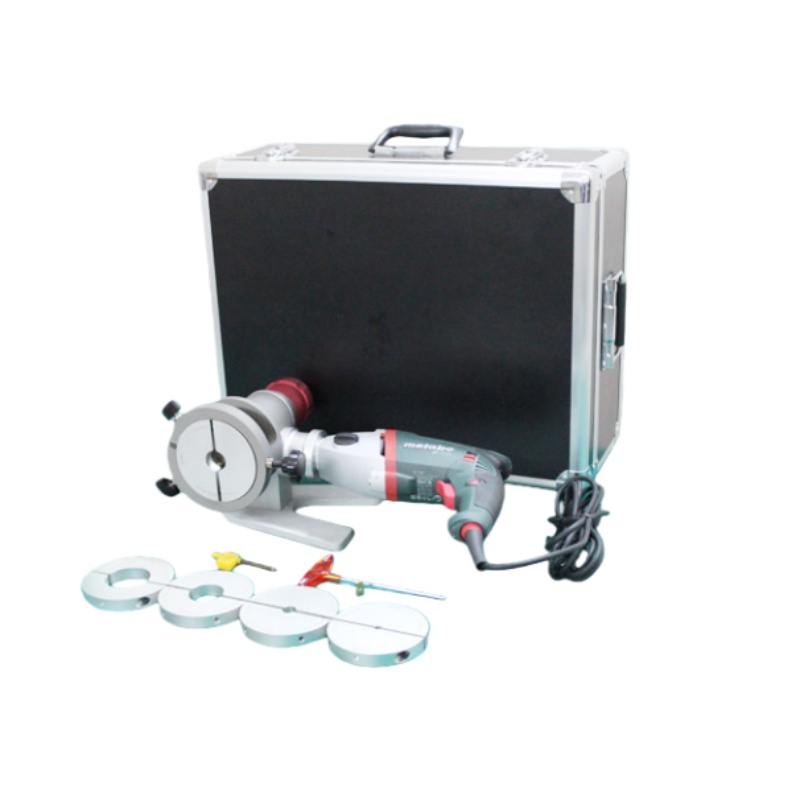

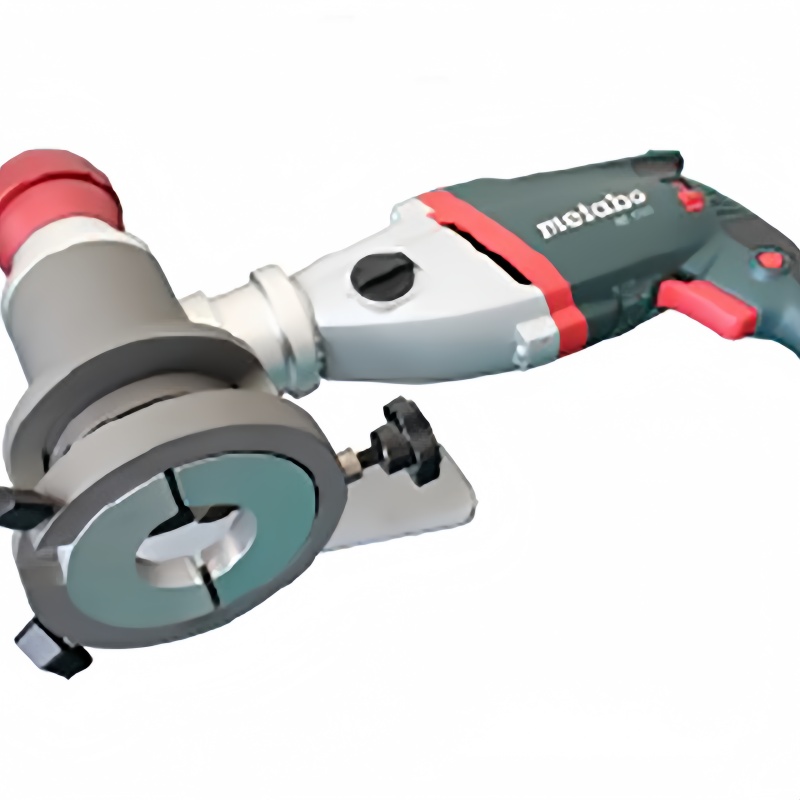

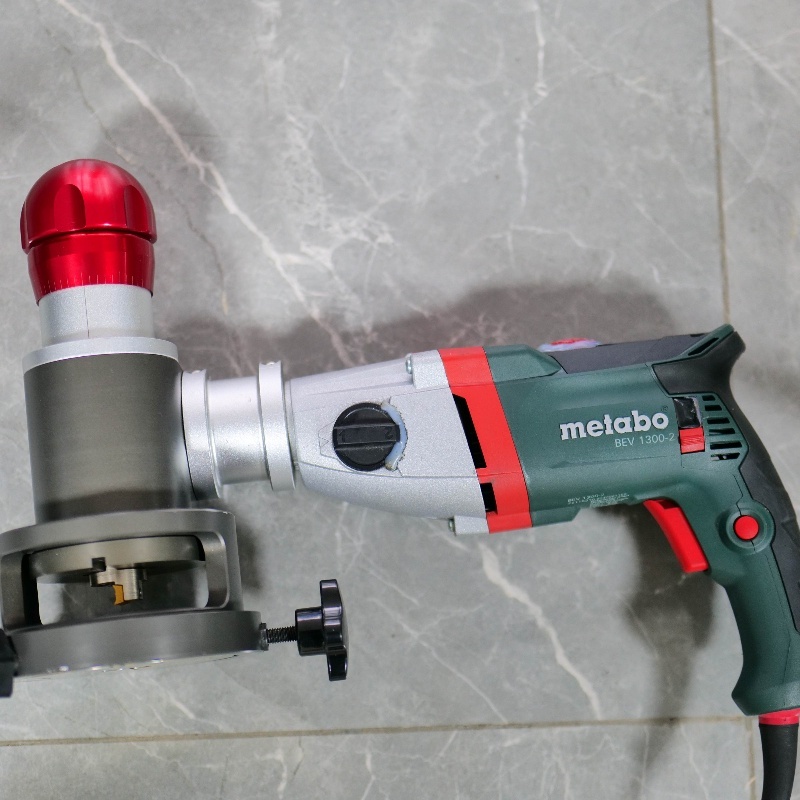

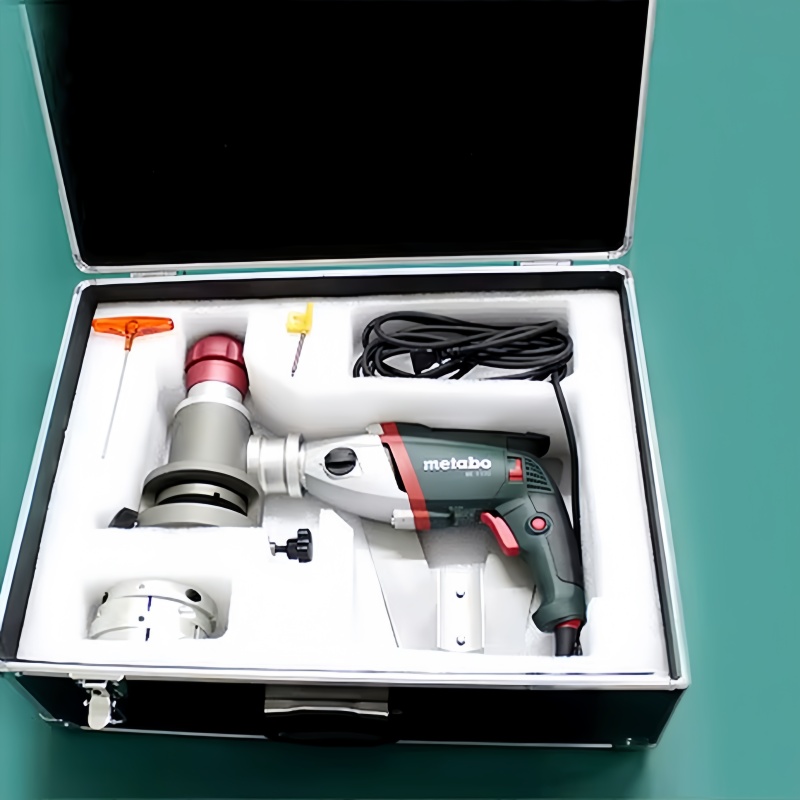

3-inch Pipe Facing Machine

Product Introduction

3-inch Pipe Facing Machine：

It trims pipe ends ranging from Φ12.7 to Φ76.2, applicable to stainless steel, carbon steel, titanium alloy and other pipe materials. It thoroughly removes burrs on cut ends for subsequent welding preparation. Powered by 220V external electricity, it features a wide facing range and high working efficiency.

Product Advantage

1. Specially designed for high-precision facing of stainless steel pipe ends

2. Ensures perfectly square, burr-free finished end faces

3. Quick-change chuck & cutter design for easy operation

4. Optional dedicated support stand for beveling work

5. High-efficiency double-edged cutters with special coating

6. Powered by imported variable-speed motor for robust performance

7. No extra auxiliary tools required

Technical Parameters

Product Uses

1. Fluid fittings:

Thin-walled stainless steel pipe fittings, automatic feeding with plain ends, no collapsed edges or burrs, pipe end flaring, butt-welded ball fine machining.

2. Thermal power plant:

Maintenance and replacement of boiler water walls and economizer tube bundles. On-site pipeline modification with plain end processing.

3. Factory machinery:

Precision steel pipe plain ends, ensuring accurate joint plain ends.

Product Operate Guide

1. Check the outer diameter of the pipe, select the corresponding clamping sleeve fixture, and clamp it onto the machine head positioning seat.

2. Install the coated double-edged milling cutter and tighten the tool holder; for lithium battery models, install a fully charged Metabo battery.

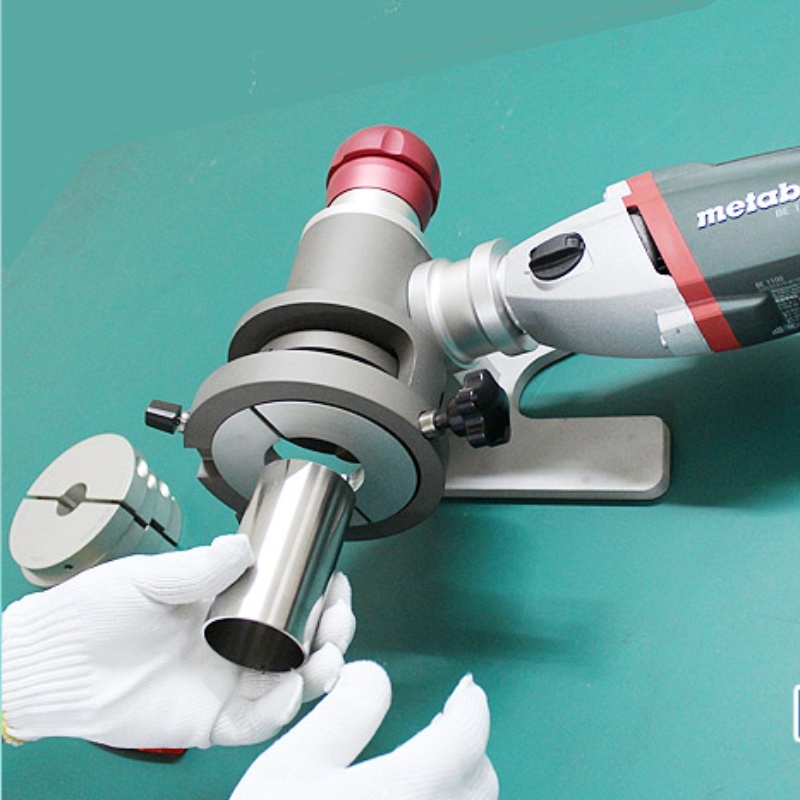

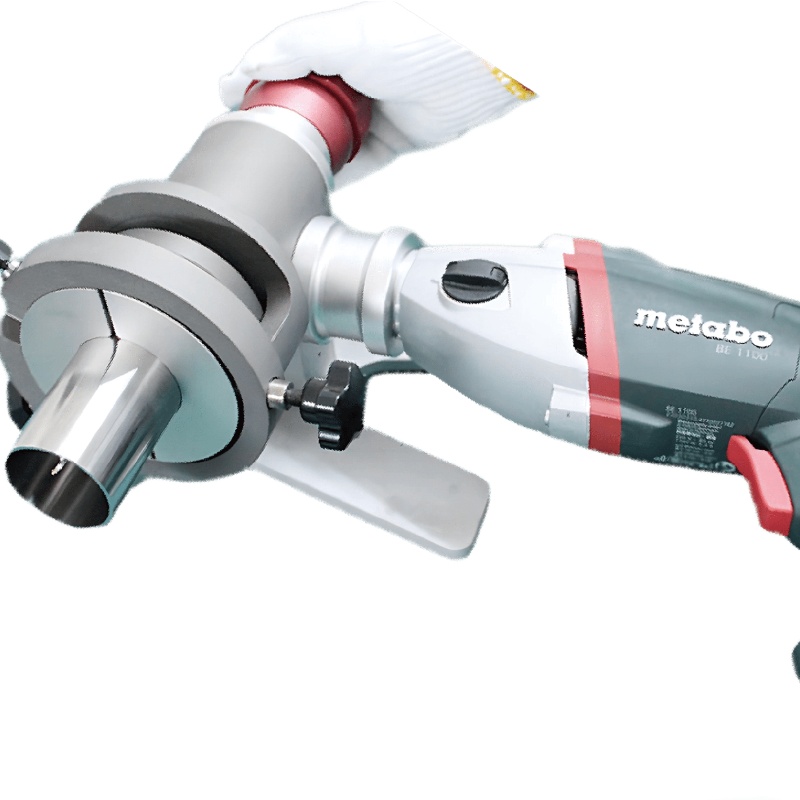

3. Pass the pipe through the fixture, with the pipe end extending 2~3mm beyond the fixture surface for machining allowance.

4. Start the equipment, the machine head feeds the milling cutter at a constant speed to finish the pipe end, perform milling passes to flatten the end face, remove burrs, and slightly chamfer.

5. After the end face is milled flat, the cutter automatically returns to its original position.
