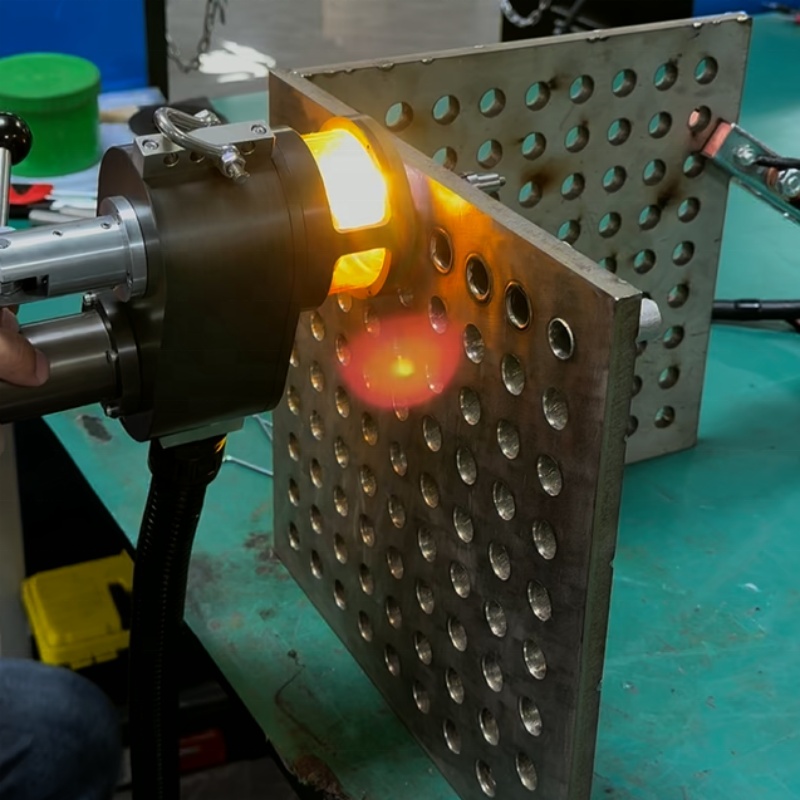

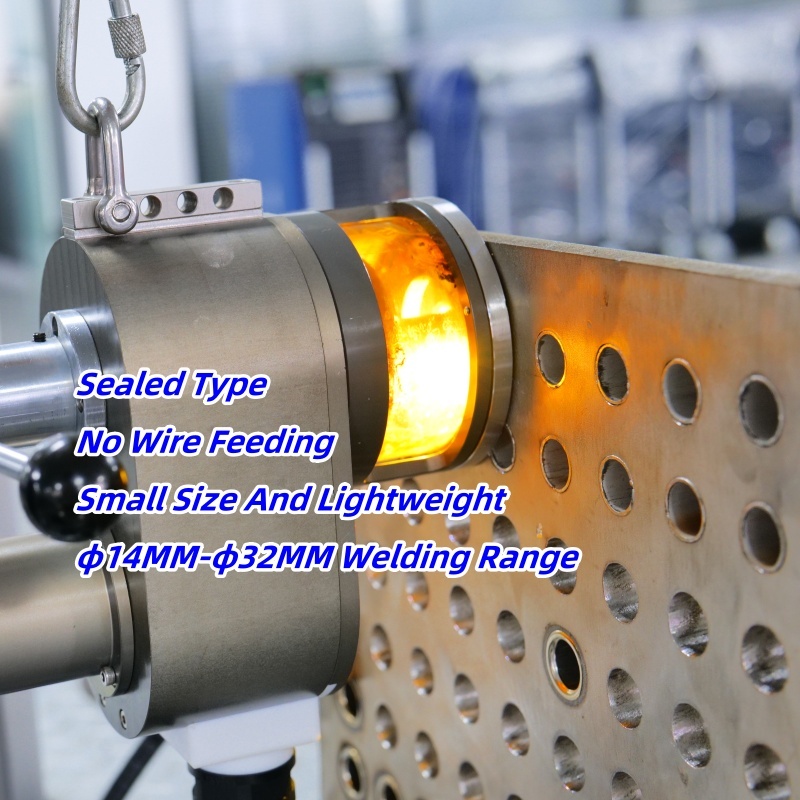

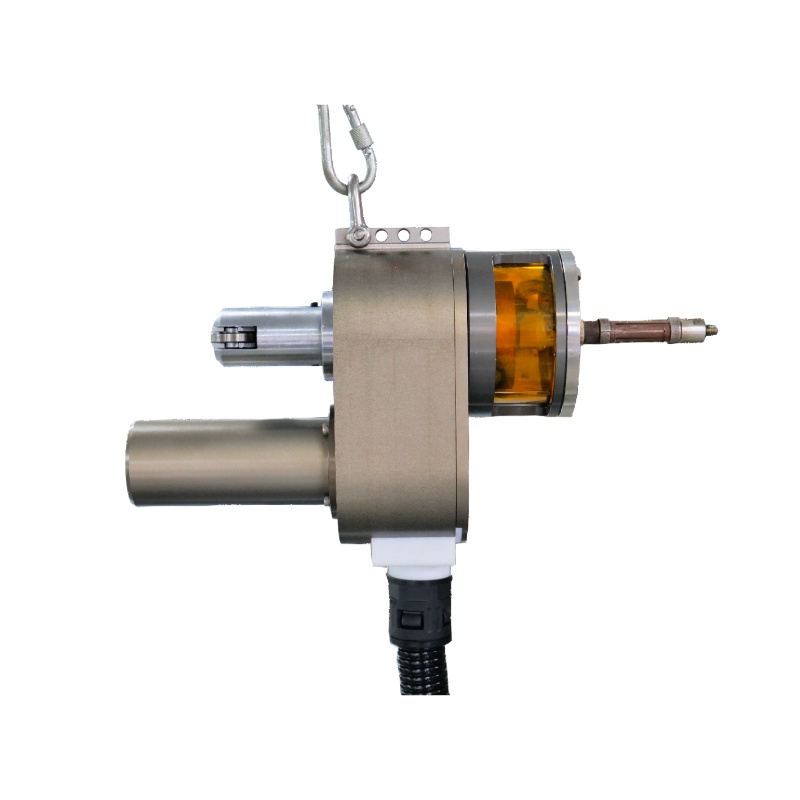

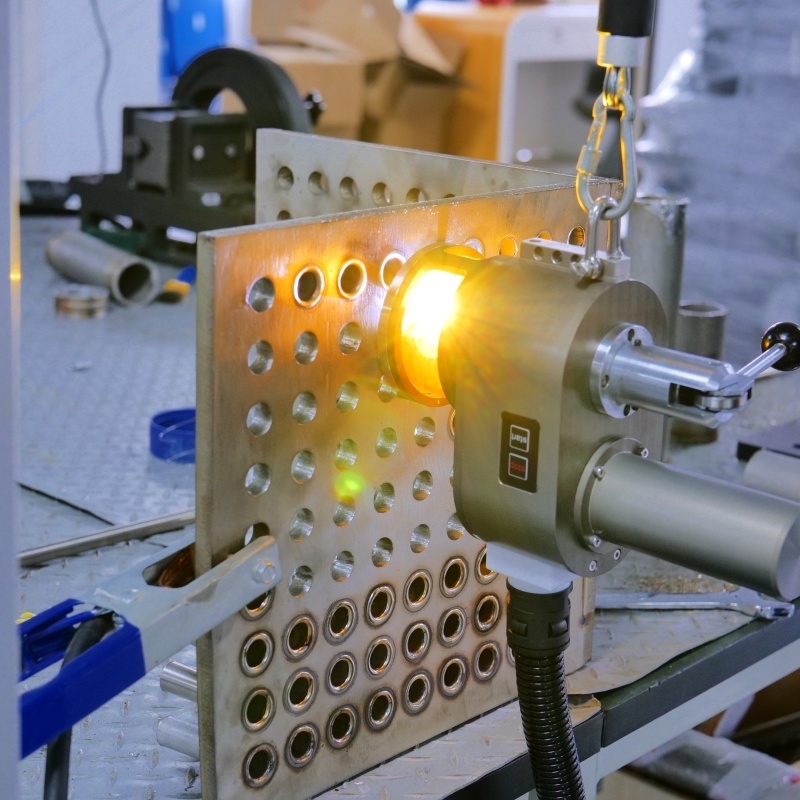

The AT40 Sealed Autogenous Tube-to-Tubesheet Welder is capable of welding tubes ranging from φ16 to φ32 mm. It is suitable for welding tubes to tubesheets made of materials such as stainless steel, carbon steel, and titanium alloys. Featuring an expanding-mandrel positioning mechanism and a torch design that rests directly against the workpiece, the unit ensures precise alignment, safety, and reliability, while offering convenient and rapid operation.
1. The AT40 welding head features wire-feed-free autogenous welding; its compact size and lightweight design ensure ease of operation.
2. It utilizes a closed-chamber welding process, enabling the production of high-quality weld seams.
3. The welding head incorporates a circulating water-cooling system, allowing for extended periods of continuous operation.
4. Equipped with a water, gas, and electrical slip ring assembly, it permits continuous rotation without cable entanglement, facilitating all-position welding and single-pass formation.
5. Utilizing the TIG (GTAW) process, it produces weld seams free from porosity, undercut, and cracking, consistently passing non-destructive testing on the first attempt.
| Model | AT40 |

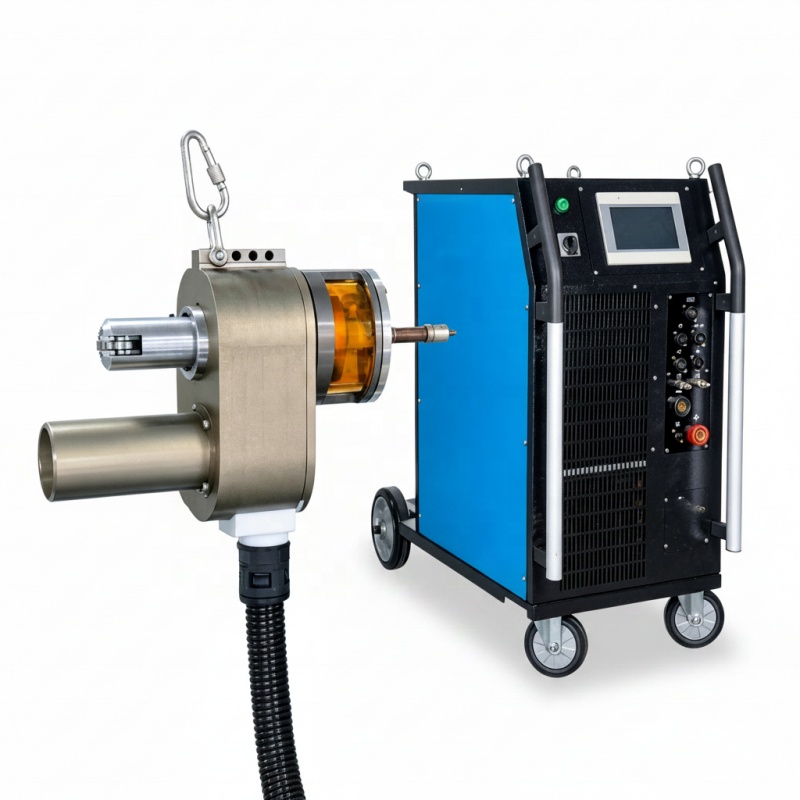

| Power Source | aw400 |
| Weldable Material | CS, SS, Ti alloy |
| Tube OD | ø19-ø32mm |
| Inch | 3/8 - 1 1/4 in. |
| Tube sheet shape | Flush tube |
| Wire Diameter | 0.8 / 1.0mm |
| Wire Spool | Max. 1.0 kg |
| Torch inclination | 0°/7° |
| Duty Cycle | 300A 60% |
| Arc length adjustment spacing | 20mm |
| Rotation Speed | 0.6-12 rpm |
| Tungsten Electrode Dia. | 2.4 mm |
| Shielding Gas | Argon |
| Cable Assembly Length | 6 M |
| Cooling | Water |
| Cooling flow | ≥600 ml/Min |
| Weight | 3 kgs (W/o cable) |
| Shipping Weight | 26 kgs |
| Package Size | 700490350mm |

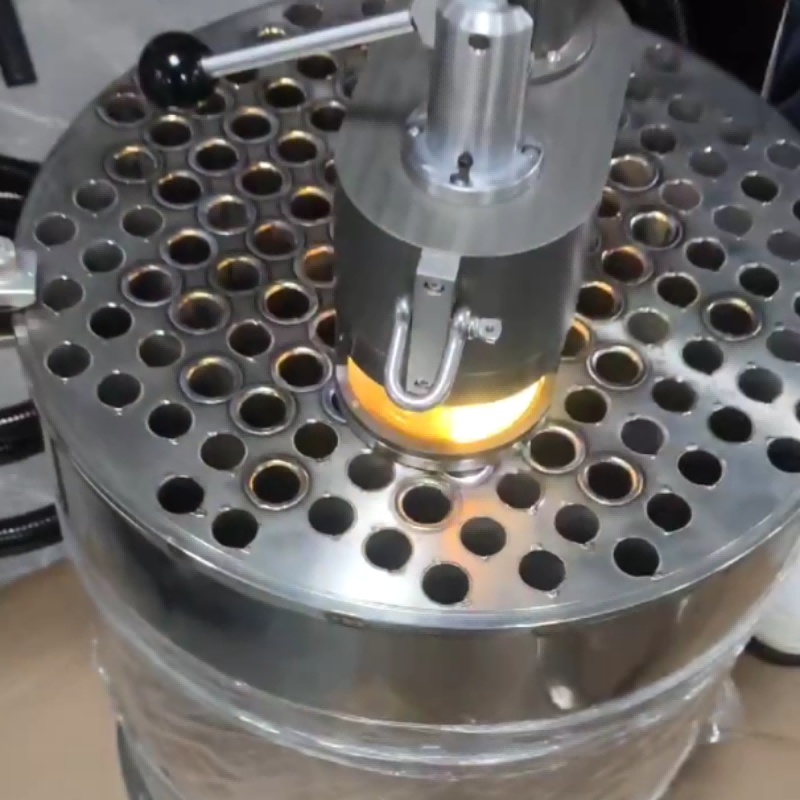

1. Pressure Vessels: Characterized by dense tube sheets and a high volume of holes, these applications demand extensive batch welding. The AT40 welding head is ideally suited for welding small-diameter stainless steel tubes, particularly in environments with tight tube spacing and compact spatial constraints.
2. Sanitary Heat Exchangers: Automated tube-to-tube sheet welding ensures a smooth inner wall finish—free from discoloration or impurities—thereby eliminating the risk of secondary contamination and guaranteeing a crevice-free design. Furthermore, the process preserves the original inner diameter post-welding, ensuring consistent and stable quality.
3. Condensers/Evaporators: The AT40 tube-to-tube sheet autogenous welding system delivers a precise, leak-proof seal. By utilizing low heat input, it prevents weld deformation and is perfectly suited for applications involving confined spaces, dense tube sheets, and the requirement for all-position welding without any dead zones.
