One-inch Pipe Facing Machine

Product Introduction

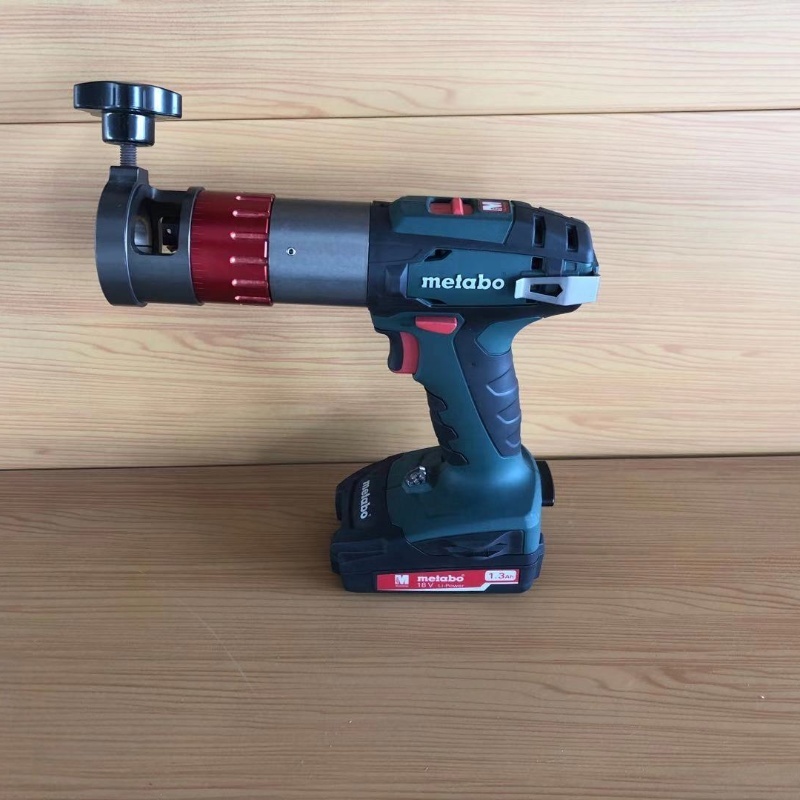

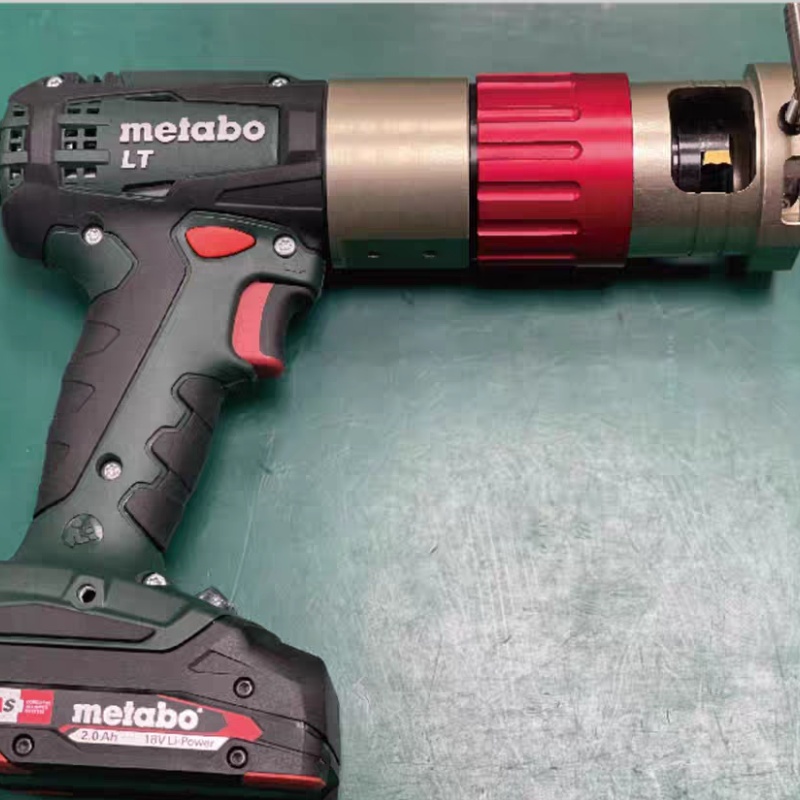

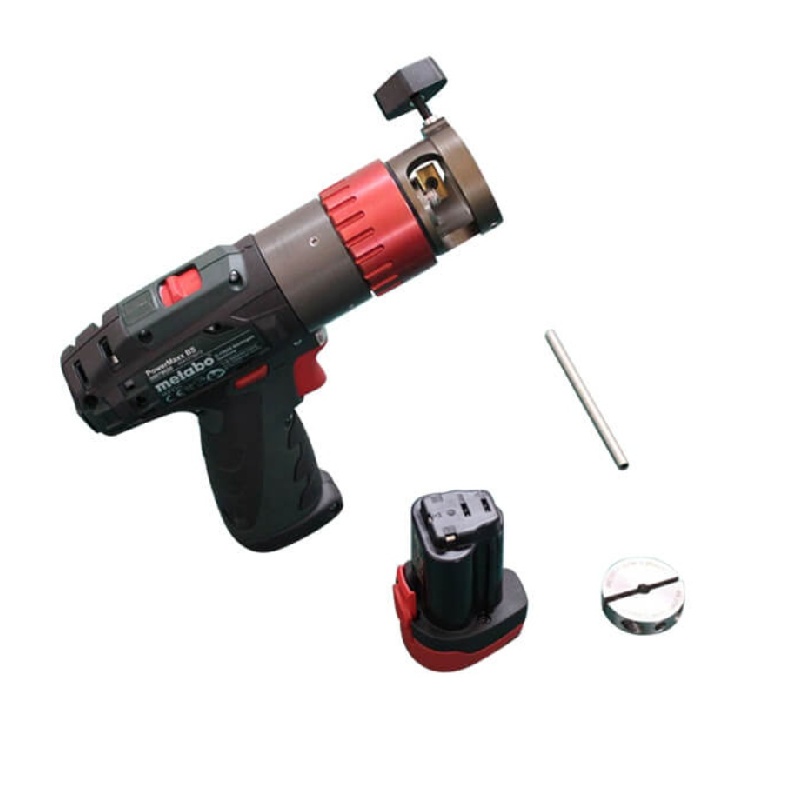

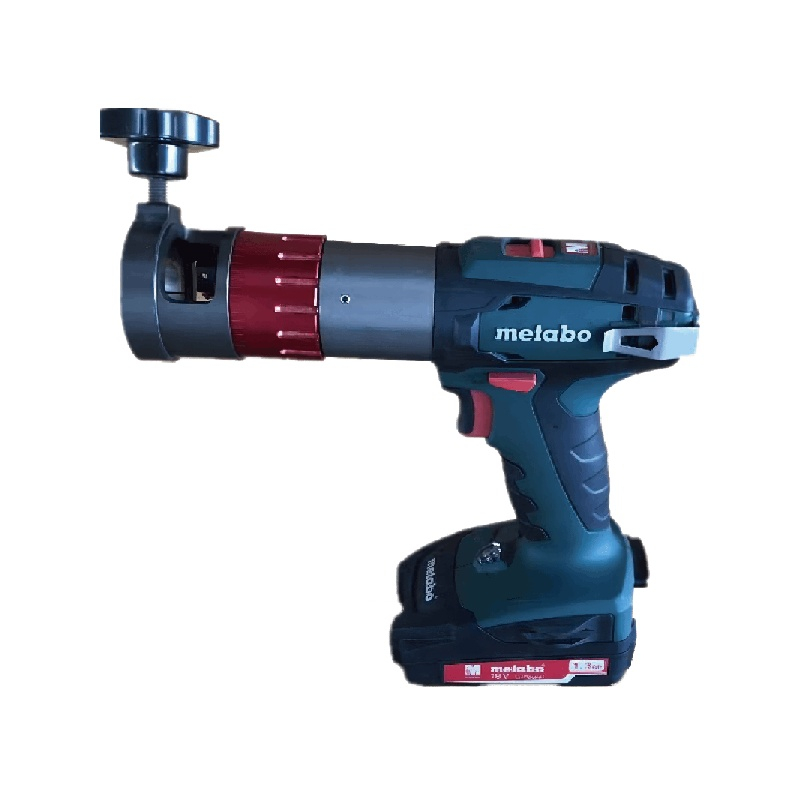

one-inch Pipe Facing Machine

Pipe facing machine can processes pipes ranging from Φ6mm to Φ25.4mm, applicable for stainless steel, carbon steel, titanium alloy and other pipe materials.

It thoroughly removes burrs on cut ends for optimized welding preparation.

Designed for small-diameter tubing; with detachable battery, easy to operate and portable.

Product Advantage

1. High-precision facing for stainless steel tube ends, ensuring perpendicular, burr-free finish

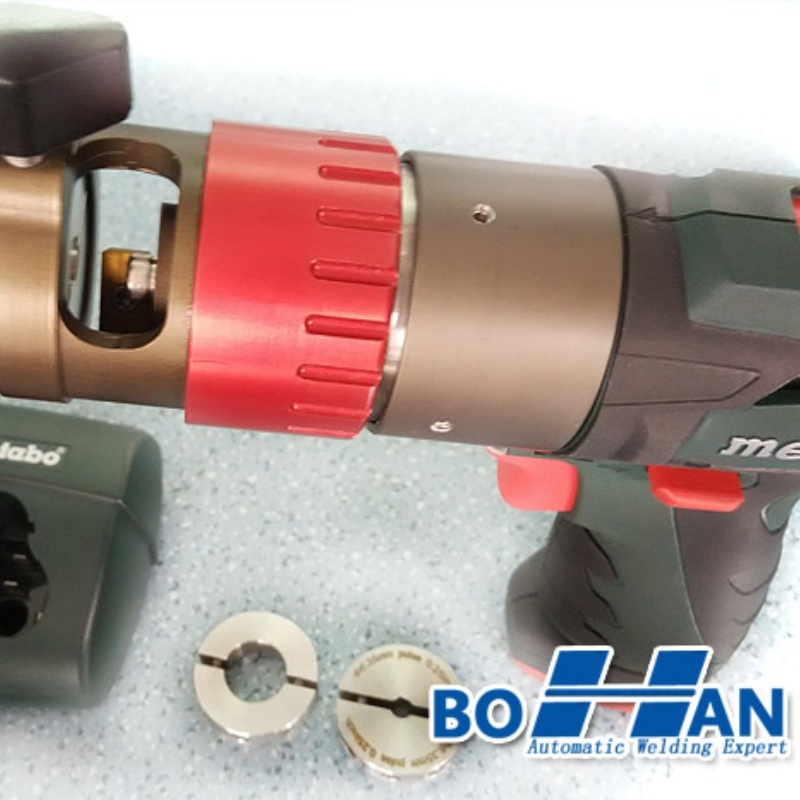

2. Quick swap of collets, cutters & workpieces for easy operation

3. No tool holder replacement required; covers full 6–25.4mm OD range in one setup

4. High-efficiency double-edged cutters with special coating

5. No extra auxiliary tools needed

6. Compact, lightweight design for flexible & safe operation

7. Powerful performance powered by German Metabo battery

Technical Parameters

Product Uses

1. Heat Exchanger/Pressure Vessel Manufacturing Factory (Most Commonly Used)：

Condensers, air coolers, shell-and-tube heat exchangers; tube sheets prepped with flat ends before welding, densely packed tube bundles milled flat at the tube ends, deburred, lightly chamfered, with consistent tube end heights to ensure fully automatic tube sheet welding without missed welds; compatible with carbon steel, stainless steel, titanium tubes, and duplex steel.

2. Prefabricated Pipe Processing Factory：

Prefabrication lines for gas, chemical, and power plant pipelines: after cutting, the pipes go through an automatic flat-end process on the assembly line, producing smooth, perpendicular ends. Pipes can then be directly welded using automatic circumferential seam welders, eliminating manual grinding and allowing for mass production on the assembly line.

3. Sanitary Pipeline Production (Pharmaceutical/Food/Beverage/Pure Water)：

304/316L stainless steel sanitary pipes, cold-cut with flat, oxidation-free ends, used for automatic butt welding in clean piping systems. Suitable for pharmaceutical equipment, brewing pipelines, and pure water system pipe processing.

4. Refrigeration and Air Conditioning Equipment：

Batch flat-end processing of small copper/stainless steel tubes for evaporators and condensers, compatible with brazing and automated tube assembly welding.

Product Operate Guide

1. Check the outer diameter of the pipe, select the corresponding clamping sleeve fixture, and clamp it onto the machine head positioning seat.

2. Install the coated double-edged milling cutter and tighten the tool holder; for lithium battery models, install a fully charged Metabo battery.

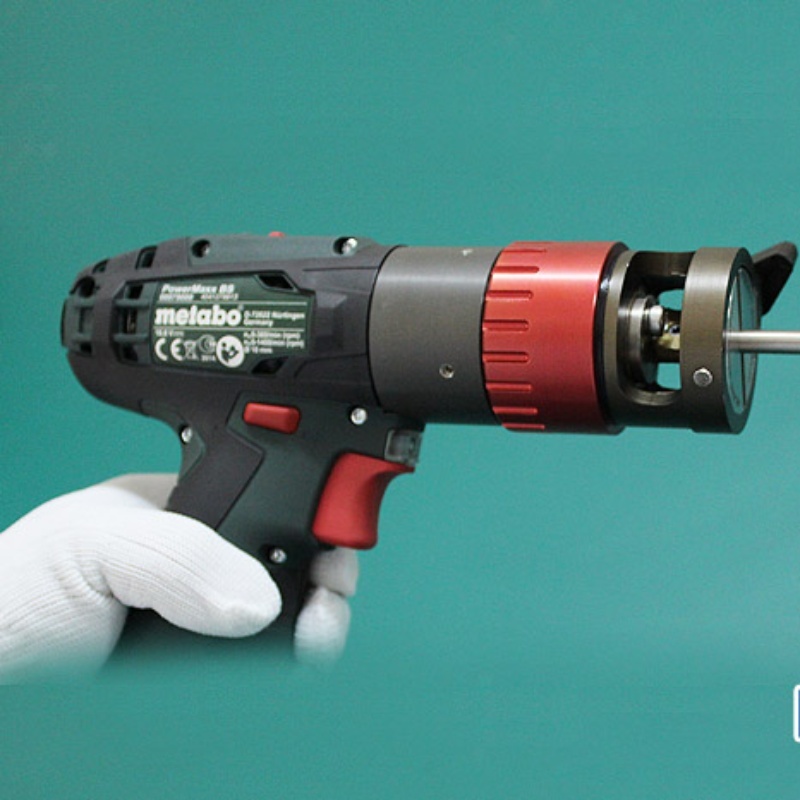

3. Pass the pipe through the fixture, with the pipe end extending 2~3mm beyond the fixture surface for machining allowance.

4. Start the equipment, the machine head feeds the milling cutter at a constant speed to finish the pipe end, perform milling passes to flatten the end face, remove burrs, and slightly chamfer.

5. After the end face is milled flat, the cutter automatically returns to its original position.
